Aston Martin Wheel Spacer Collection

Brightstone Engineering’s Aston Martin wheel spacers are CNC-machined in the UK from aerospace-grade 6082-T6 aluminium and available in hubcentric fitments for perfect alignment and vibration-free performance. Each spacer kit includes extended high-tensile bolts, a black anodised finish for corrosion resistance, and a lifetime guarantee.

Why Choose Our Spacers

• Performance wheel spacers improve stance, stability, and cornering.
• Hubcentric spacers ensure safe, vibration-free installation.
• Available in common Aston Martin fitments: 5×114.3 (68.1 mm bore), 5×128 (75.1 mm bore), and 5×108 (63.4 mm bore).
• Custom wheel spacers available on request.

Compatible Models

Image	Model	Bolt Pattern (PCD)	Centre Bore	Typical Spacer Thicknesses	Buy Here

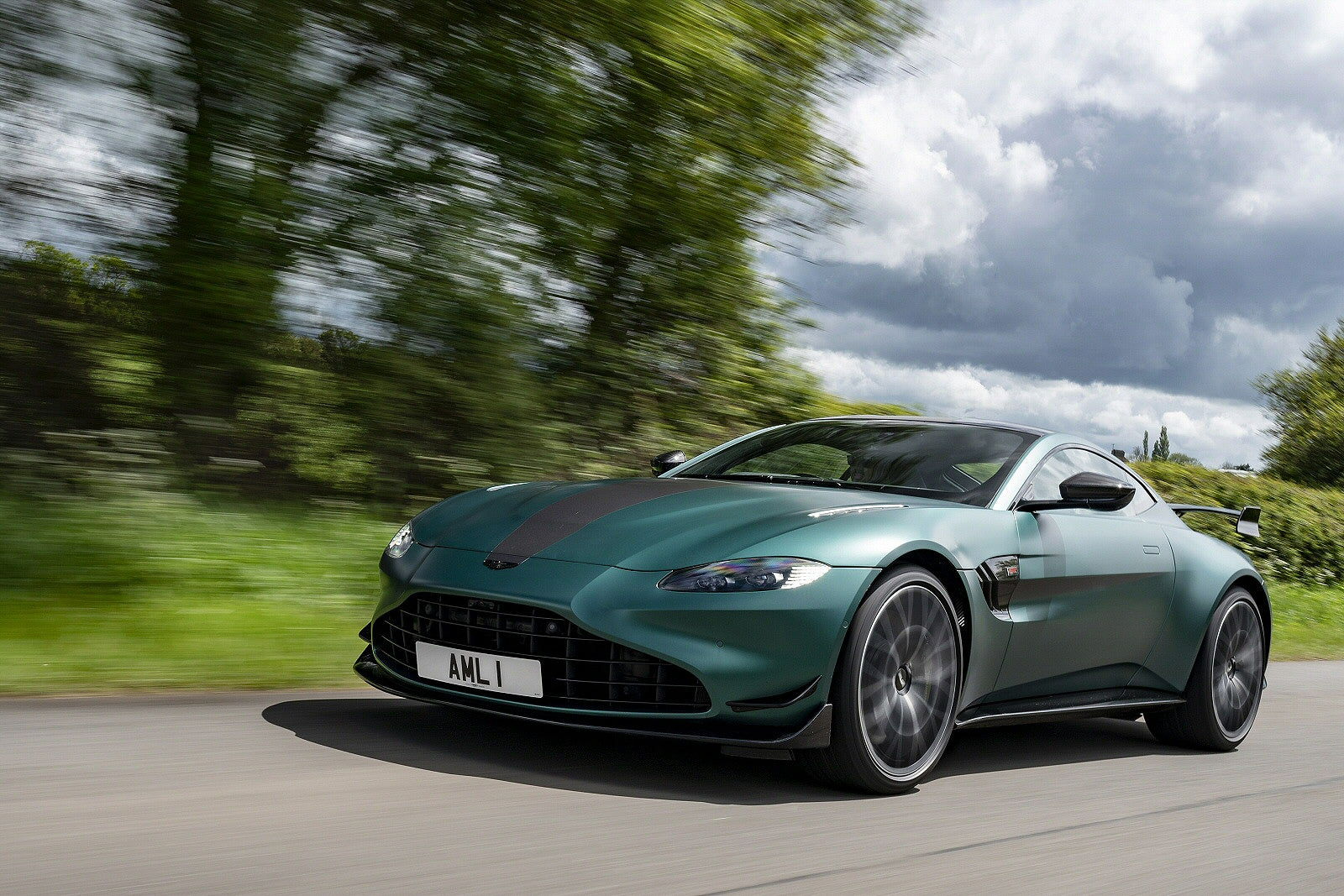

	Aston Martin Vantage	5×114.3	68.1 mm	10–25 mm	Buy here

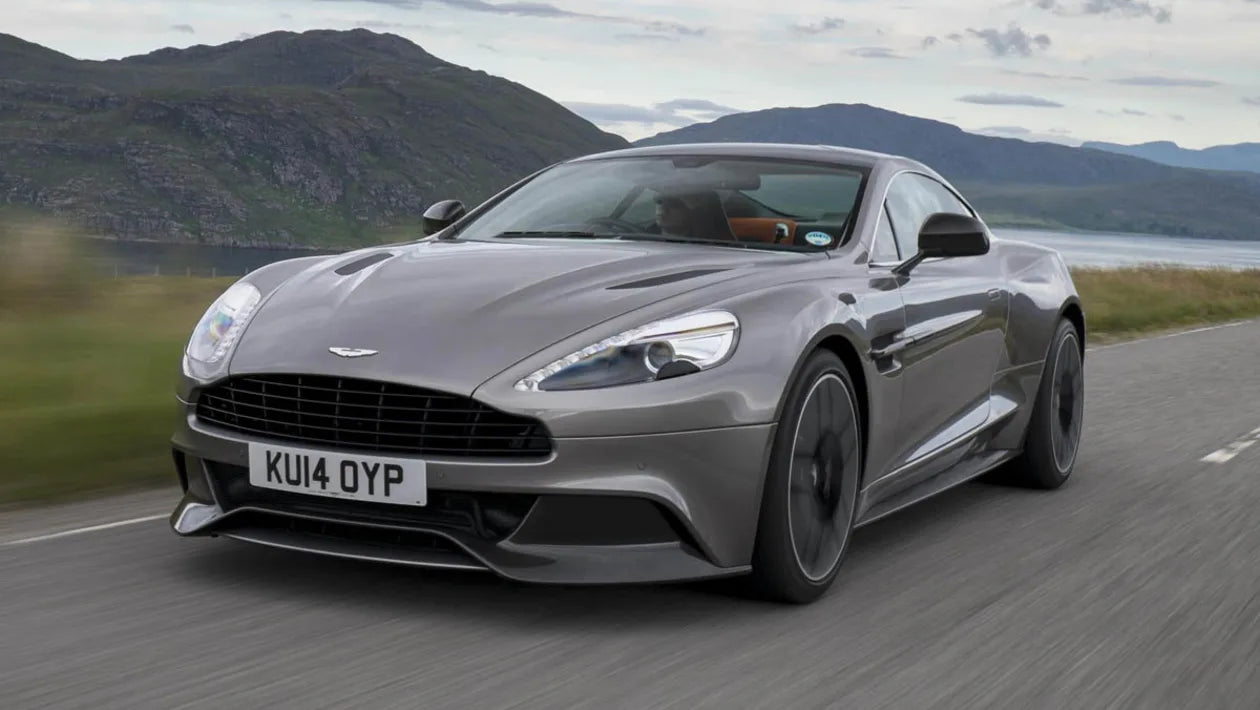

	Aston Martin Vanquish III	5×128	75.1 mm	10–25 mm	Buy here

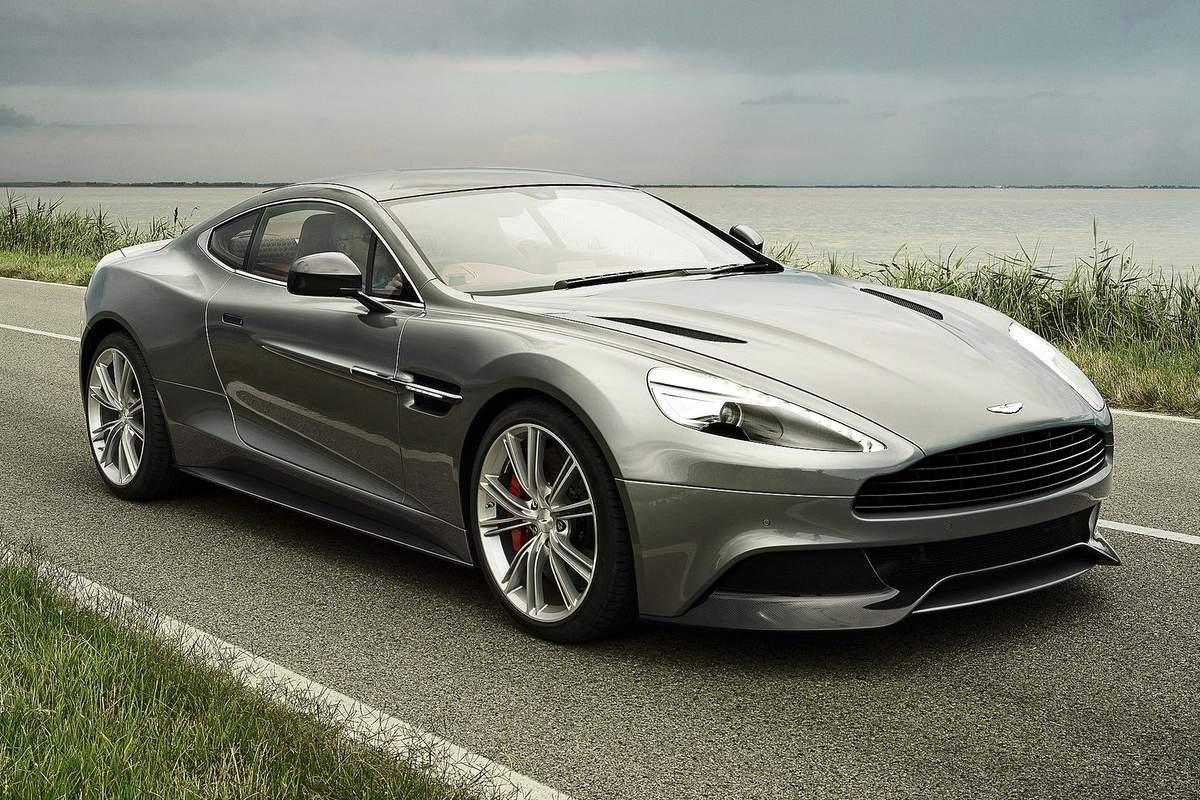

	Aston Martin Vanquish II (2012–2018)	5×128	75.1 mm	10–25 mm	Buy here

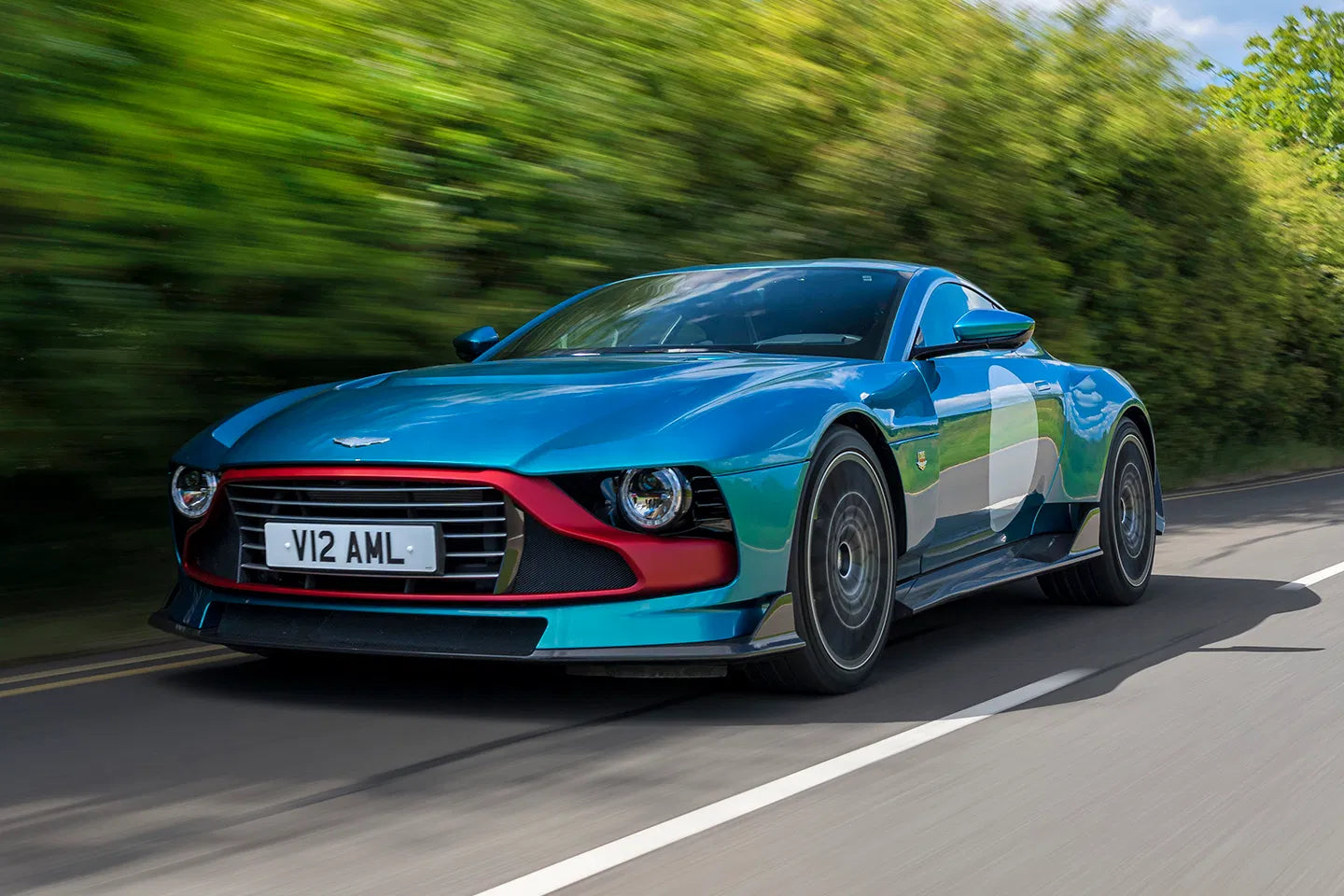

	Aston Martin Valour	5×128	75.1 mm	10–25 mm	Buy here

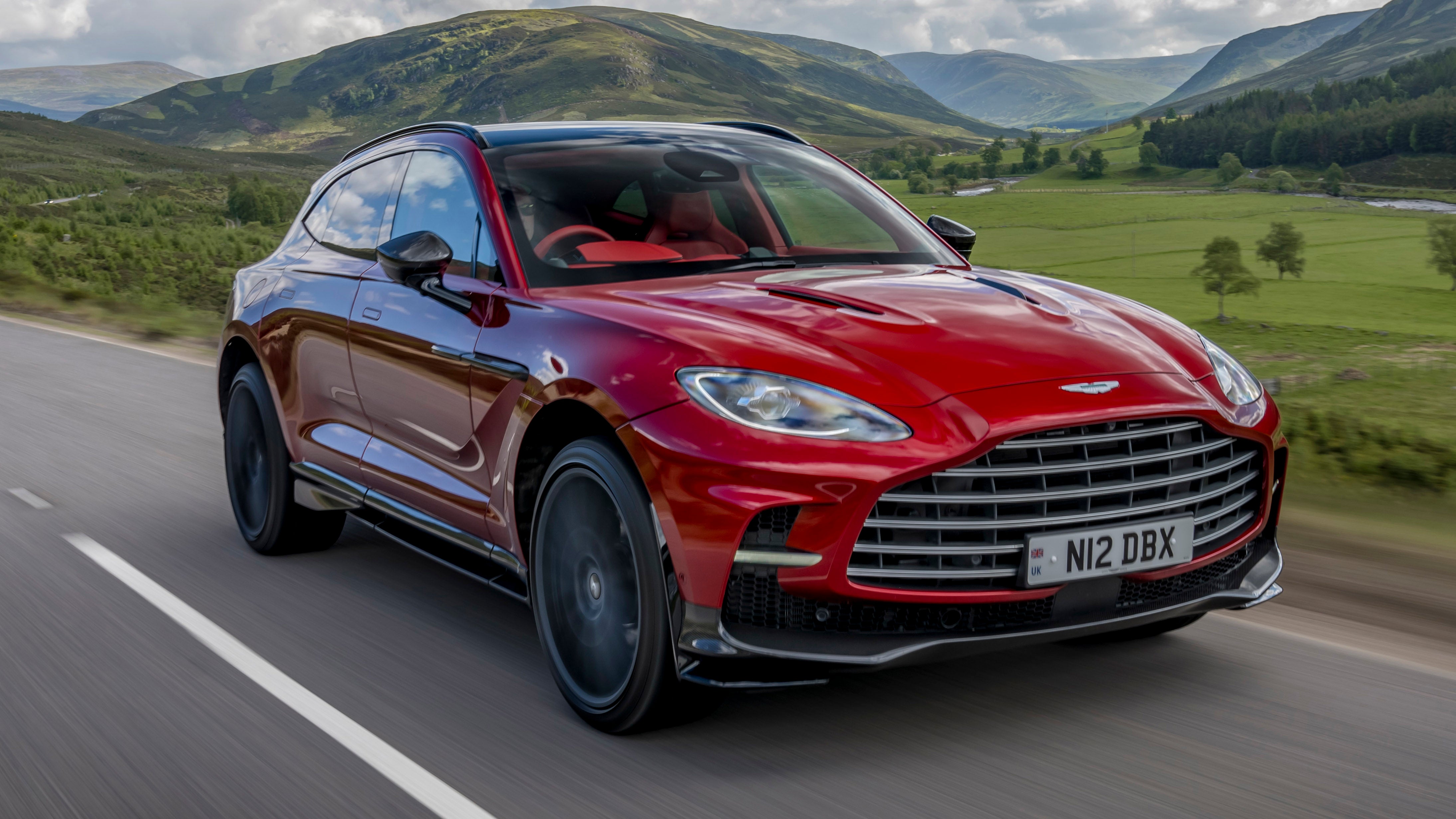

	Aston Martin DBX / DBX707	5×128	75.1 mm	10–25 mm	Buy here

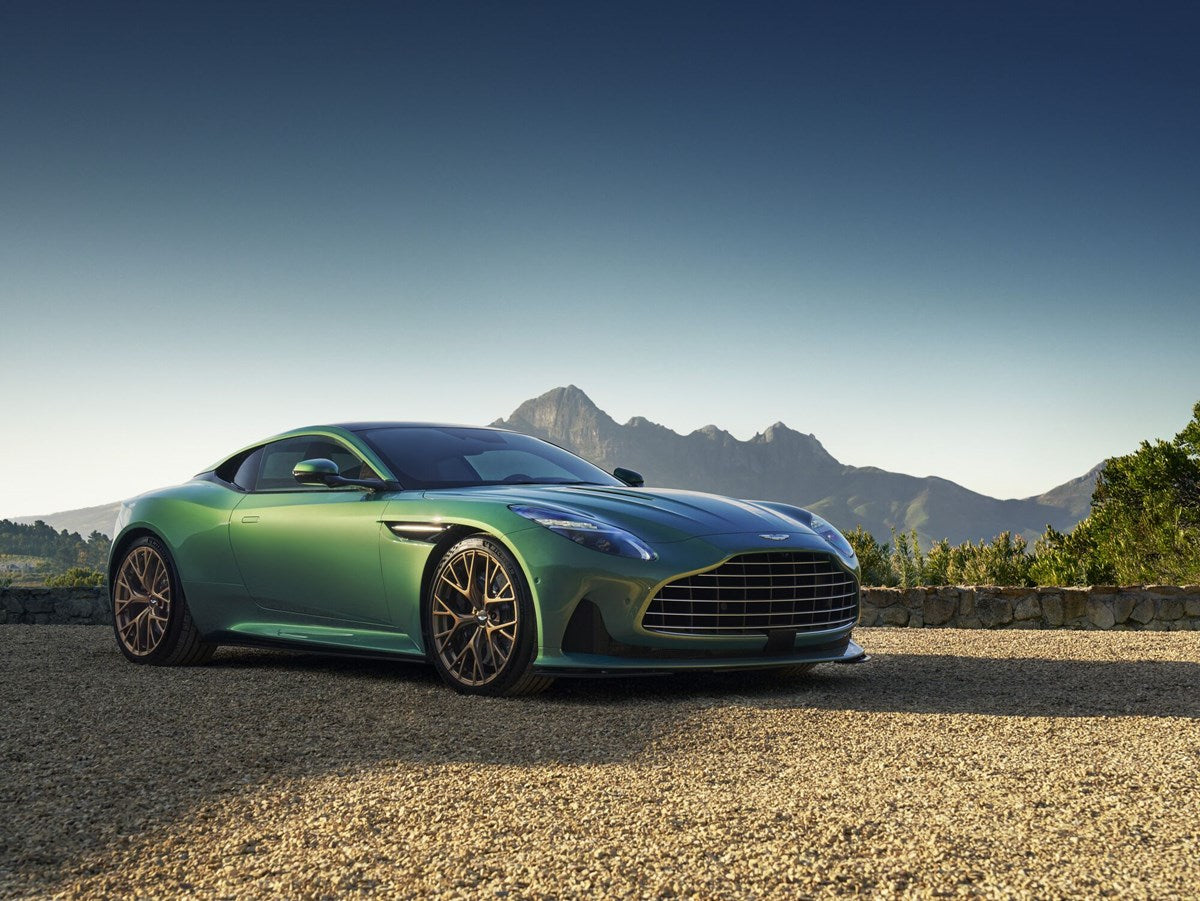

	Aston Martin DB12	5×128	75.1 mm	10–25 mm	Buy here

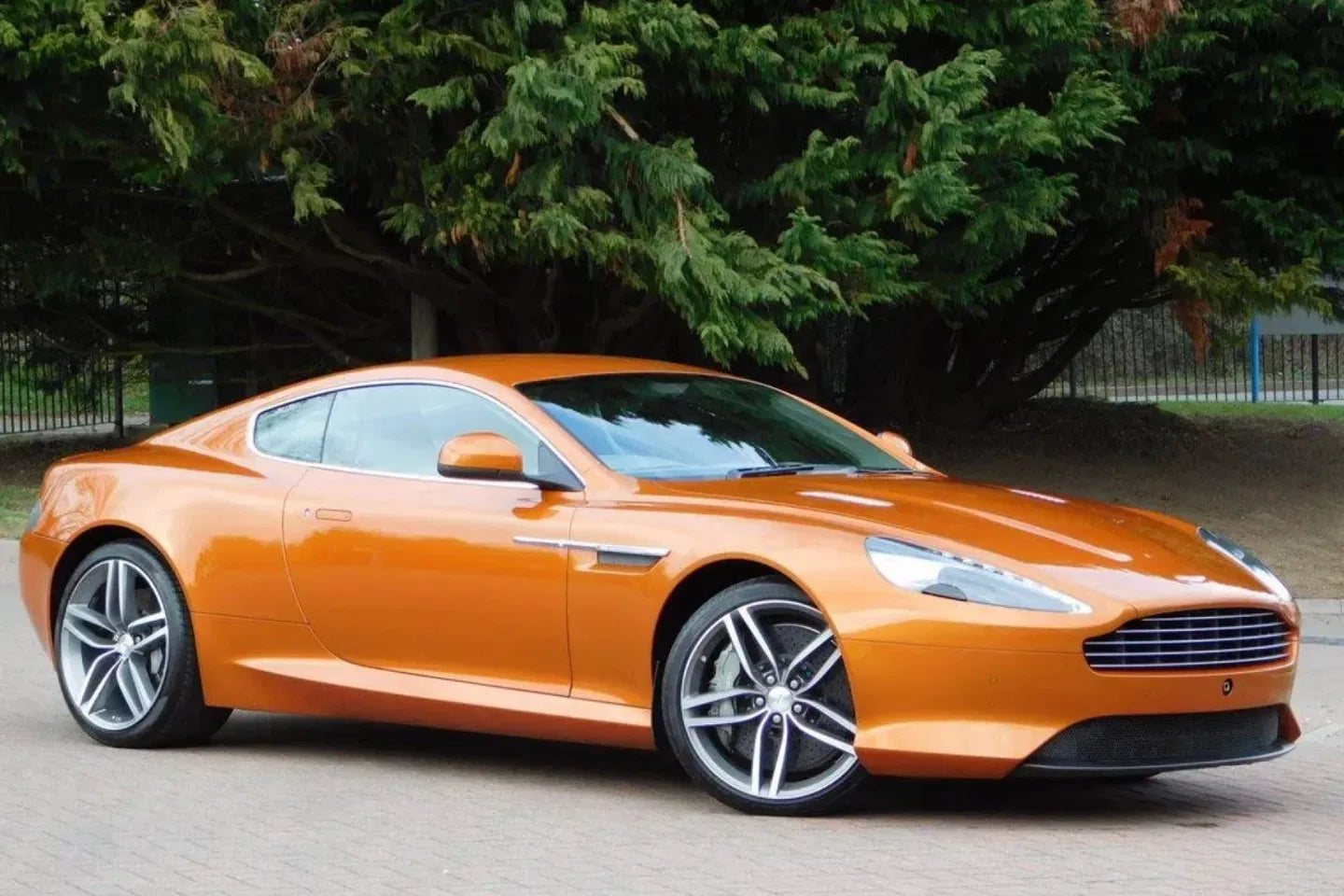

	Aston Martin Virage	5×114.3	68.1 mm	10–25 mm	Buy here

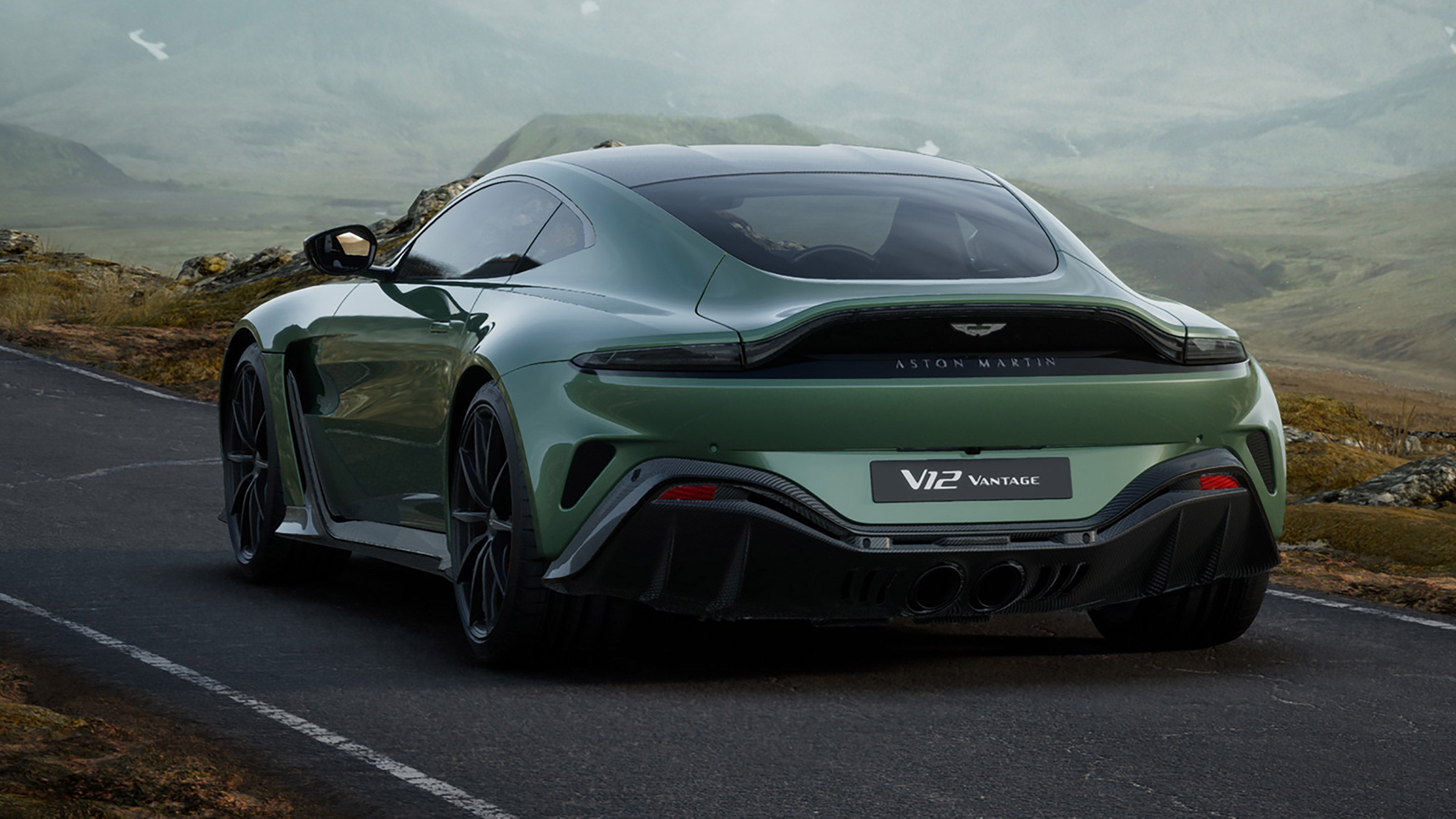

	Aston Martin V12 Vantage	5×114.3	68.1 mm	10–25 mm	Buy here

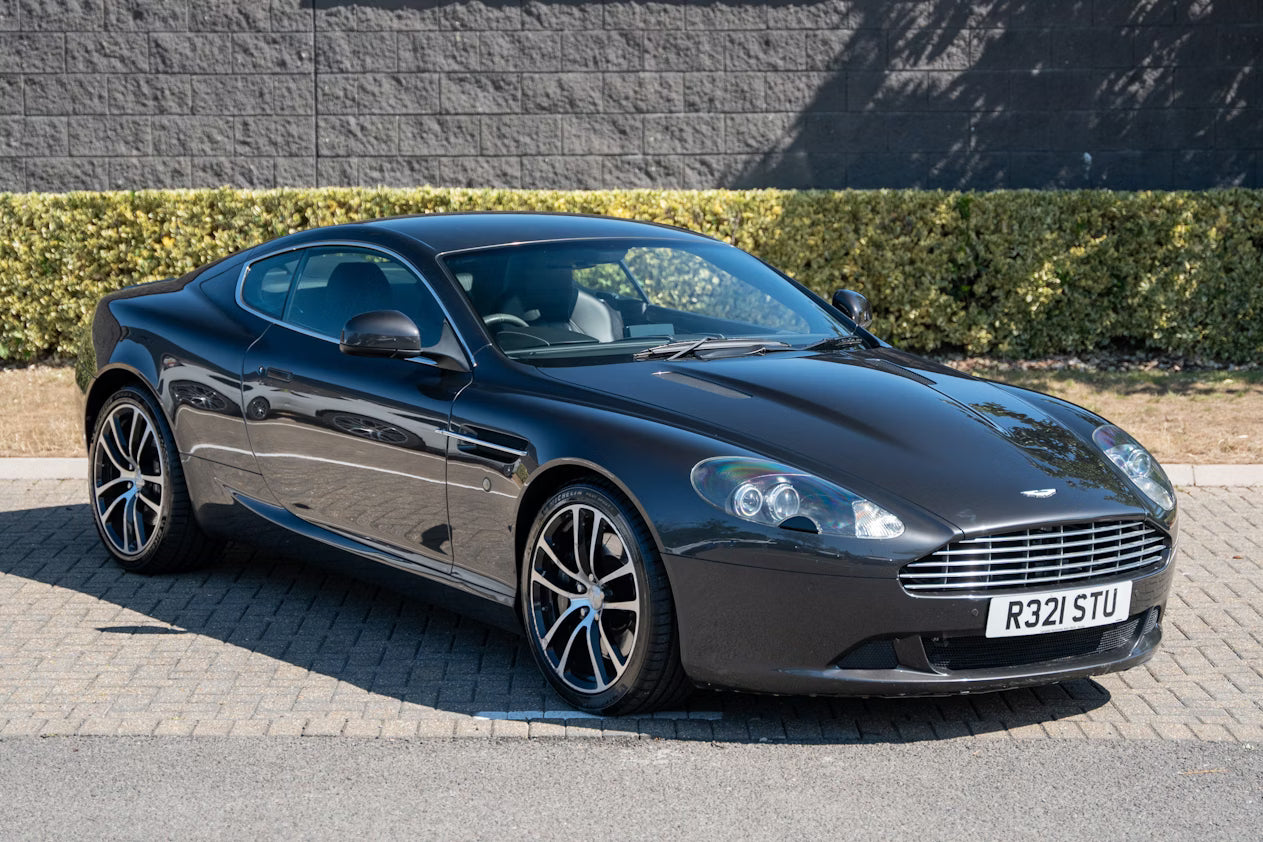

	Aston Martin DB9	5×114.3	68.1 mm	10–25 mm	Buy here
	Aston Martin Vanquish (earlier model)	5×108	63.4 mm	10–25 mm	Buy here

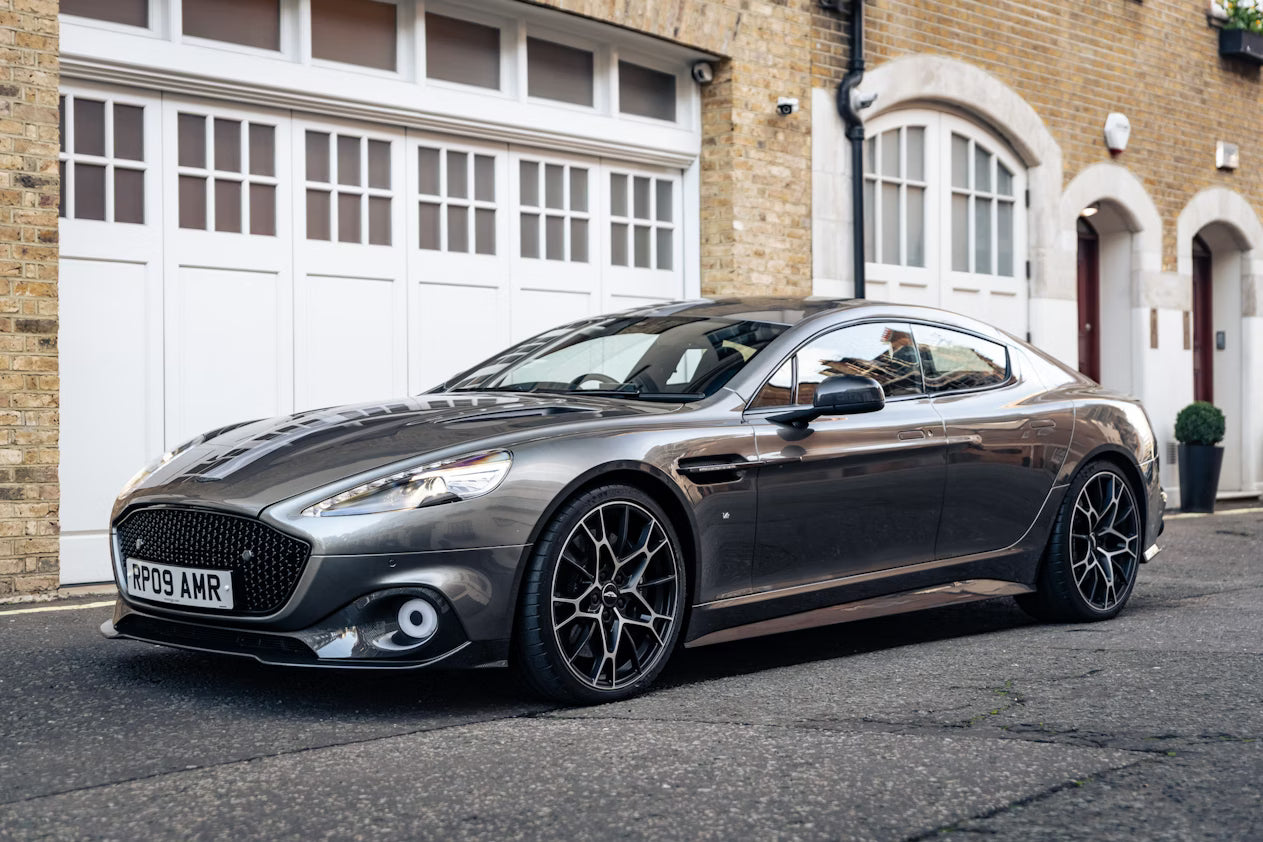

	Aston Martin Rapide / Rapide AMR	5×128	75.1 mm	10–25 mm	Buy here

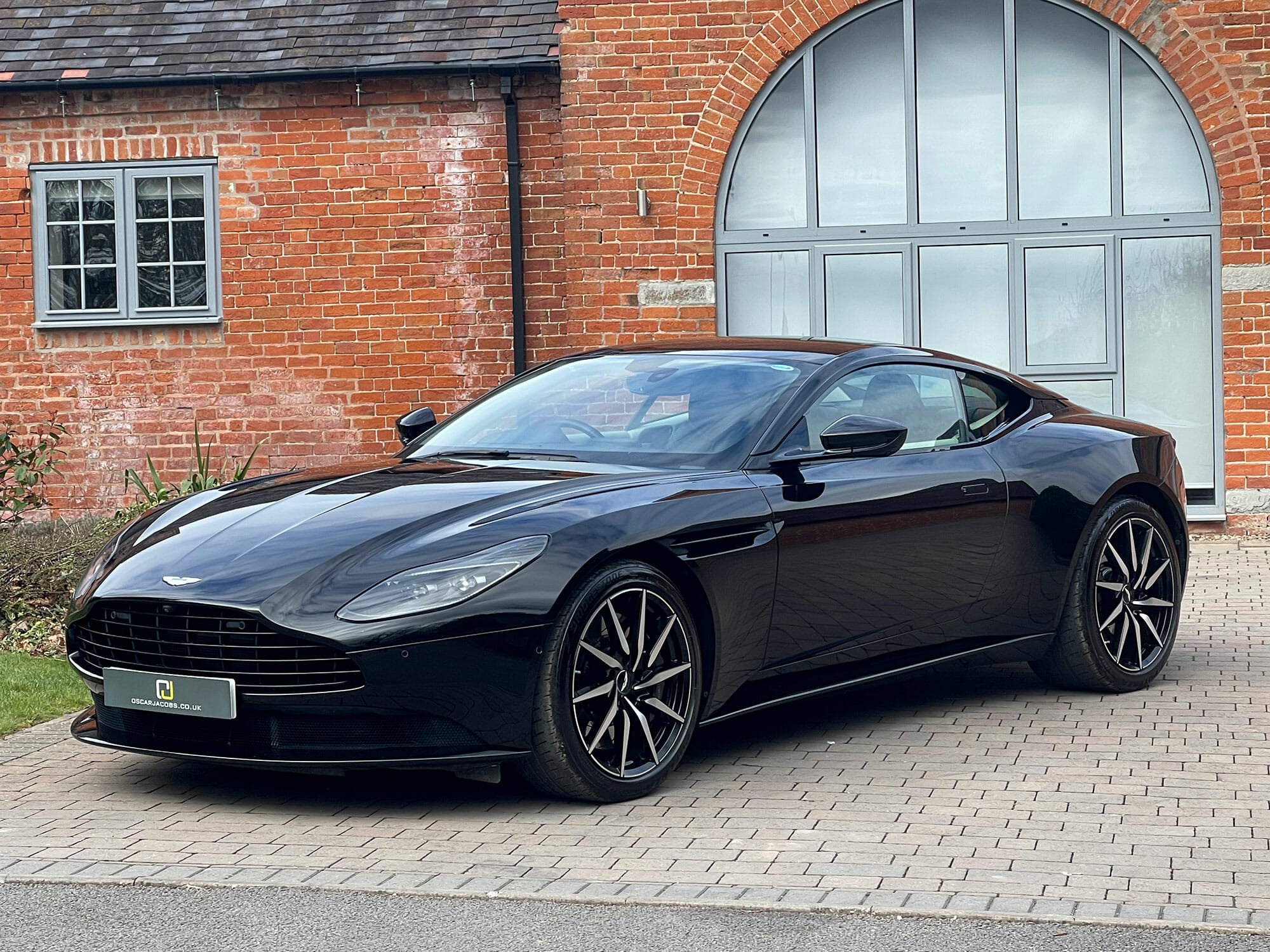

	Aston Martin DB11	5×128	75.1 mm	10–25 mm	Buy here

Spacer Sizes

Standard thicknesses: 10 mm, 12 mm, 15 mm, 20 mm, 25 mm.
(AL7075-T6 wheel spacers available for motorsport or extreme performance builds.)

Wheel Spacer Safety & Installation

All Brightstone spacers are manufactured to OEM safety standards. Professional installation is recommended, with bolt torque checked after 50–100 miles. See our Aston Martin Spacer Guide .
