Aston Martin Vantage Wheel Spacers 5x114.3 – Precision CNC Machined in the UK
Enhance the stance, handling, and road presence of your Aston Martin Vantage with Brightstone Engineering’s premium hubcentric wheel spacers (also known as rim spacers or car wheel spacers). Manufactured in the UK from aerospace-grade 6082-T6 aluminium, these spacers deliver a perfect fit, OEM-level reliability, and motorsport-grade precision.
Key Features
- Hubcentric design for perfect fitment and zero vibration
- CNC machined from UK-sourced 6082-T6 billet aluminium
- Black anodised finish for durability and corrosion resistance
- Supplied with extended high-tensile wheel bolts matched to Aston Martin specifications (M14×1.5 conical seat)
- Improves handling and cornering by widening the track width
- Provides clearance for the large factory Brembo calipers and aftermarket brake kits
- Designed, engineered, and finished in Britain

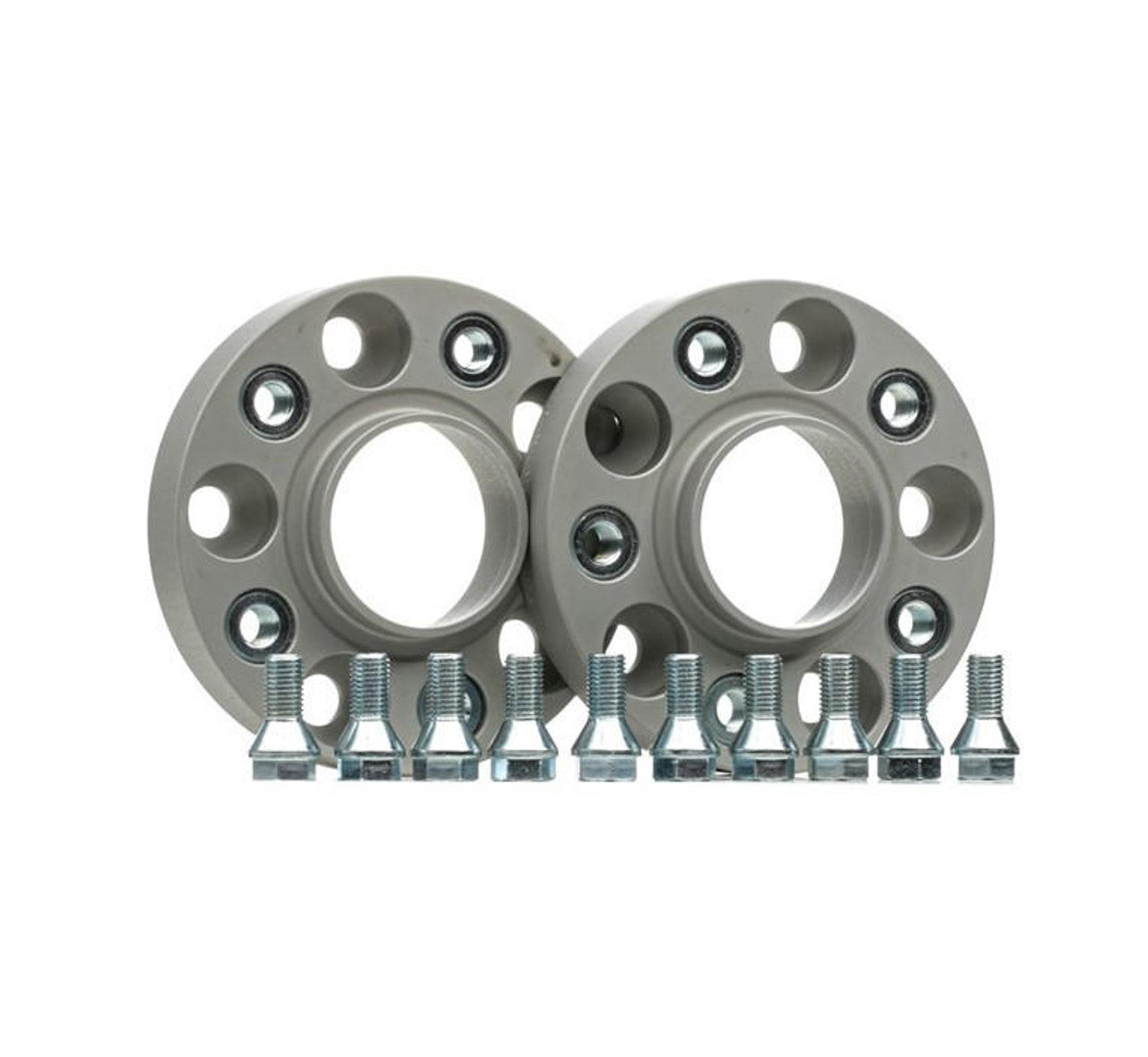

Brightstone Engineering Spacer Kit Contents
- 2× Aston Martin Vantage wheel spacers (choose thickness above)

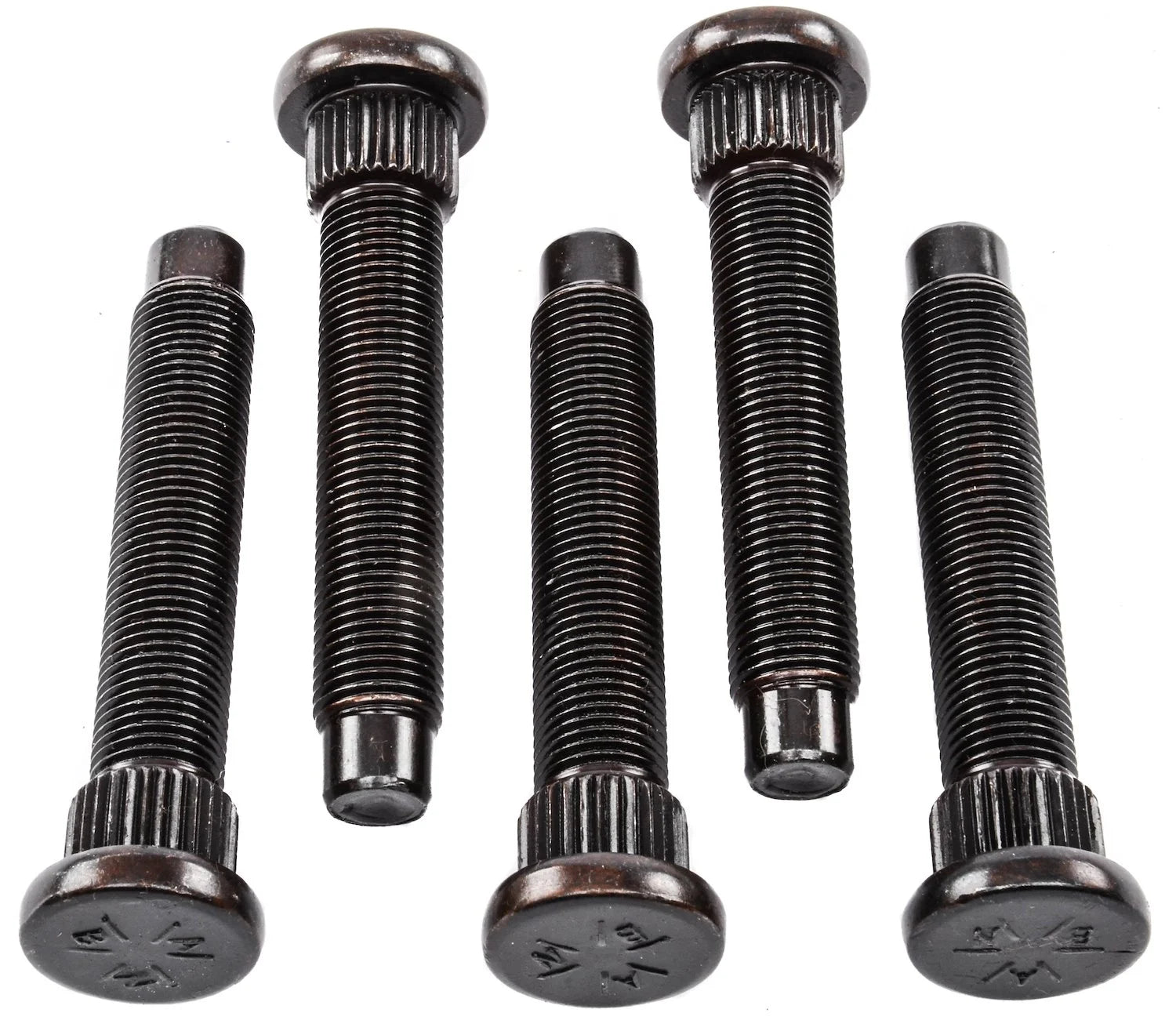

- Stud Adapter Kit / Open Ended Wheel Nuts / extended bolts - Model Dependent
Compatibility
These wheel spacers are compatible with the following Aston Martin models:
- Aston Martin V8 Vantage 4.3 L (2005 – 2008)
- Aston Martin V8 Vantage 4.7 L (2008 – 2017)
- Aston Martin V8 Vantage S and N430 variants
- May also fit V12 Vantage models with the same 5×114.3 PCD and 68.1 mm centre bore
Vehicle Specifications:
- PCD: 5×114.3 mm
- Centre Bore: 68.1 mm
- Bolt Thread: M14×1.5
- Recommended Thickness: 12 mm front / 15 mm rear (OEM fitment)
Installation Notes
Professional installation is recommended. Always torque bolts to Aston Martin specifications and ensure at least 8 full turns of thread engagement for safe installation.
Re-check torque after 50–100 miles of driving.
Shipping & Warranty
- Fast UK delivery
- International shipping available
- Lifetime guarantee against manufacturing defects
Dispatched within 5-10 business days.
