Alfa Romeo Giulia, Stelvio & 159 Hubcentric Wheel Spacers – 5×110 PCD, 65.1mm Bore | UK Made | Brightstone Engineering

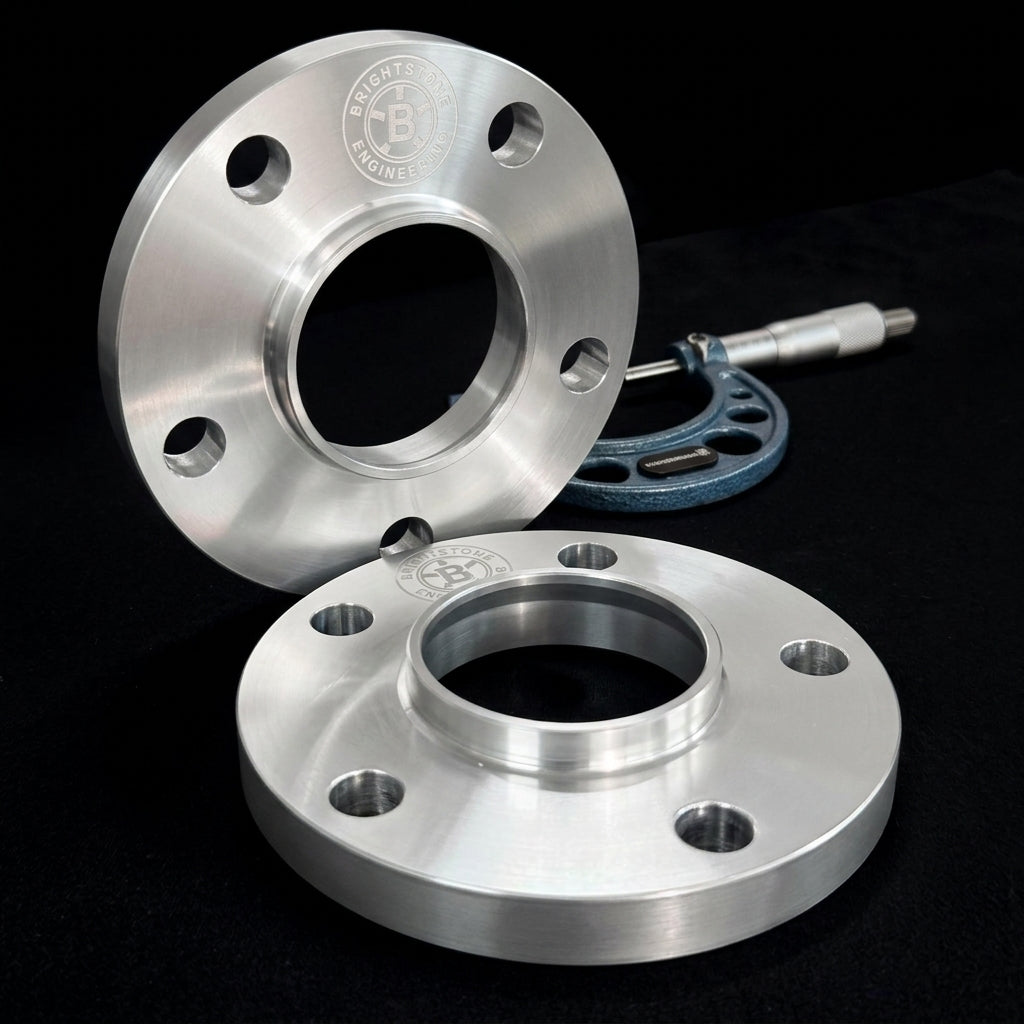

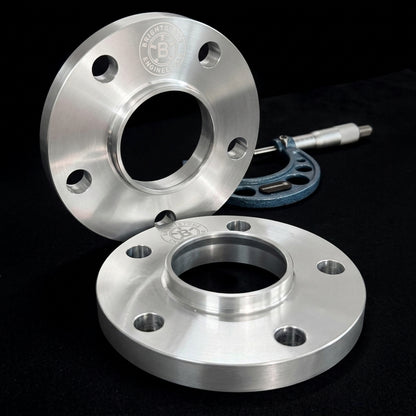

Precision CNC-machined Alfa Romeo wheel spacers for the Giulia, Stelvio and 159. These hubcentric track widening spacers are engineered in the UK from aerospace-grade 6082-T6 billet aluminium to the exact 5×110 (5x110) PCD and 65.1mm centre bore specification — delivering a measurably wider stance, corrected wheel offset, and a flush fitment that fills the arches without compromise to handling or safety.

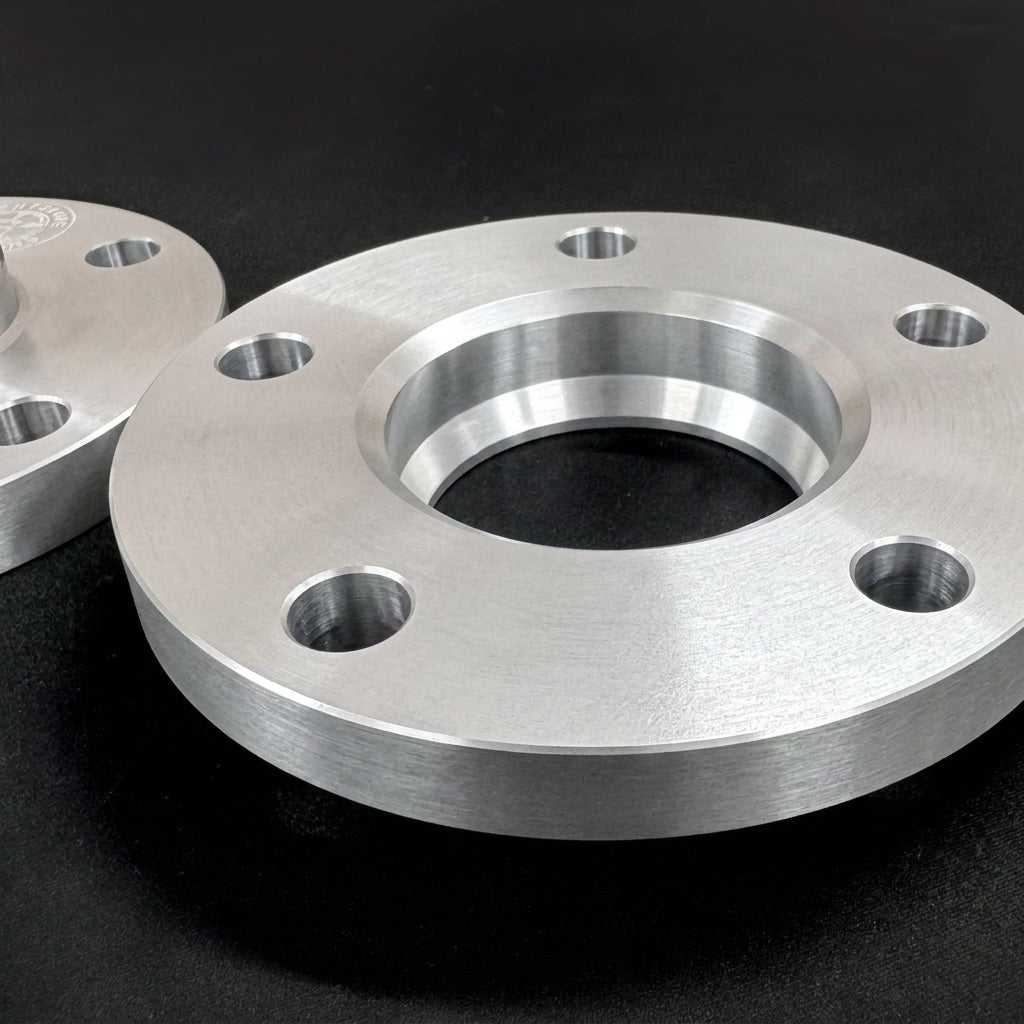

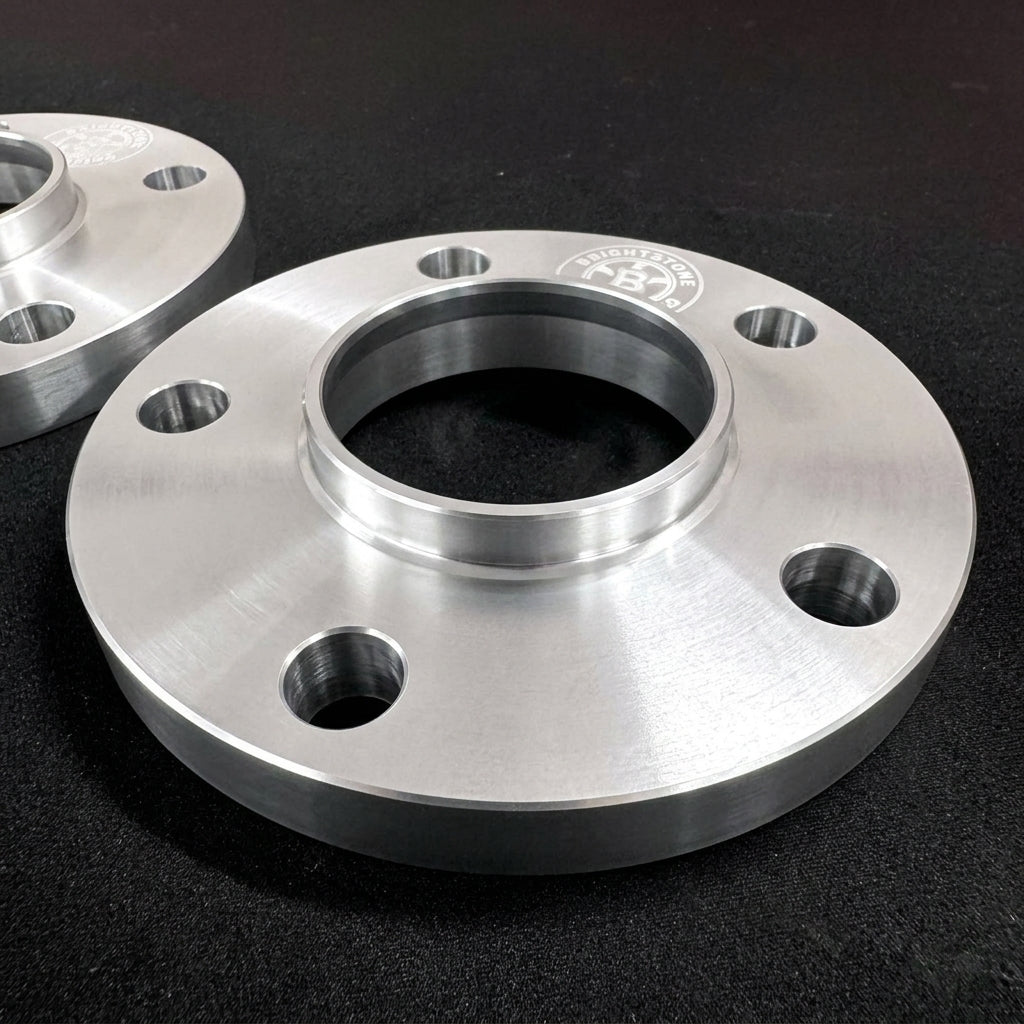

Every pair is bored to exactly 65.1mm to engage the hub register precisely, eliminating vibration at source. Supplied with extended M14×1.5 conical-seat wheel bolts matched to Alfa Romeo's OEM fastener specification.
Available in 12mm, 15mm, 20mm, and 25mm. Need a custom thickness? Contact us.
Important fitment note: These spacers are designed for Alfa Romeo's Giorgio and 939 platform models — Giulia, Stelvio and 159 — with 5×110 65.1mm hub bore and M14×1.5 bolts. They are not compatible with the Giulietta, which uses M12×1.25 bolts. Always confirm your bolt thread before ordering.
Why Brightstone Engineering:
- UK manufactured — machined in-house by a UK manufacturer, not imported and relabelled
- True hubcentric fitment — 65.1mm bore engages the hub register exactly for vibration-free running at all speeds
- 6082-T6 billet aluminium — aerospace-grade alloy, strong and lightweight
- Correct OEM-matched hardware — supplied with extended M14×1.5 conical-seat wheel bolts to Alfa Romeo's factory fastener specification
- Brake caliper clearance — creates additional clearance between the wheel and brake caliper, ideal for larger aftermarket brakes including Brembo upgrades
- Lifetime guarantee — covers materials and manufacturing defects
Brightstone Engineering Spacer Kit Contents
- 2 × hubcentric Alfa Romeo wheel spacers (your chosen thickness)
- 10 × extended M14×1.5 conical-seat wheel bolts
Compatibility / Fitment:
These Alfa Romeo 5×110 (5x110) wheel spacers are designed for vehicles with a 5×110 PCD (pitch circle diameter) wheel bolt pattern and 65.1mm hub bore (centre bore), supplied with M14×1.5 conical-seat extended wheel bolts. Compatible models include the Giulia (Type 952, 2015–present) including all variants — Super, Sprint, Veloce, Lusso, Competizione and Quadrifoglio — the Stelvio (Type 949, 2017–present) including Quadrifoglio Verde, and the 159 (Type 939, 2005–2011) in all saloon and Sportwagon variants.
Not compatible with the Giulietta — that model uses M12×1.25 bolts and requires a different kit. Not compatible with the Alfa Romeo 4C which uses a different 5×98 bolt pattern.
Check your PCD, centre bore and bolt thread before ordering.
If you're unsure, contact us and we'll confirm the correct fitment before you order.
| Model | Type | Drive | Body | Engine range | Years | HP range |
|---|---|---|---|---|---|---|
| Alfa Romeo 159 — Type 939 (2005–2011) | ||||||
| 159 | 939 | RWD | Saloon & Sportwagon | 1.8 TBi, 1.9 JTS, 2.2 JTS, 2.4 JTD, 1.9 JTDm, 2.0 JTDm | 2005–2011 | 120–200 hp |
| 159 | 939 | Q4 | Saloon & Sportwagon | 2.2 JTS Q4, 3.2 JTS Q4, 2.4 JTD Q4 | 2005–2011 | 185–260 hp |
| Alfa Romeo Giulia — Type 952 (2015–present) | ||||||
| Giulia | 952 | RWD | Saloon | 2.0 Turbo — Super, Sprint, Veloce, Lusso, Competizione | 2016–present | 200–280 hp |
| Giulia | 952 | AWD | Saloon | 2.0 Turbo — Super, Sprint, Veloce, Lusso | 2017–present | 200–280 hp |
| Giulia | 952 | RWD | Saloon | 2.2 JTD — Super, Sprint, Veloce | 2016–present | 150–210 hp |
| Alfa Romeo Giulia Quadrifoglio — Type 952 (2016–present) | ||||||
| Giulia Quadrifoglio | 952 | RWD | Saloon | 2.9 V6 Biturbo | 2016–present | 510–520 hp |
| Giulia GTA / GTAm | 952 | RWD | Saloon | 2.9 V6 Biturbo | 2021–2022 | 540 hp |
| Alfa Romeo Stelvio — Type 949 (2017–present) | ||||||
| Stelvio | 949 | AWD | SUV | 2.0 Turbo — Super, Sprint, Veloce, Lusso, Ti | 2017–present | 200–280 hp |
| Stelvio | 949 | AWD | SUV | 2.2 JTD — Super, Sprint, Veloce | 2017–present | 160–210 hp |
| Alfa Romeo Stelvio Quadrifoglio — Type 949 (2018–present) | ||||||
| Stelvio Quadrifoglio | 949 | AWD | SUV | 2.9 V6 Biturbo | 2018–present | 510–520 hp |
All models above use 5×110 PCD, 65.1mm centre bore and M14×1.5 conical-seat wheel bolts. Torque to 120Nm in a star pattern. Always confirm your vehicle's exact PCD, hub bore and bolt thread before ordering.
Not compatible with the Alfa Romeo Giulietta — that model uses M12×1.25 bolts and requires a different kit. Not compatible with the Alfa Romeo 4C which uses a 5×98 bolt pattern.
Installation Notes
- Professional installation strongly recommended, especially for collector and supercar applications
- Torque wheel bolts to the factory Alfa Romeo specification for M14 × 1.5 bolts (typically around 120–130 Nm – confirm in the owner’s manual or workshop data)
- Minimum 8 full turns of thread engagement required for safe installation
- Re-torque all wheel bolts after 50–100 miles (80–160 km) of driving
Shipping & Warranty
- Free UK delivery on all orders
- International shipping available
- Lifetime guarantee on all Brightstone spacers
Frequently Asked Questions
Are wheel spacers safe on an Alfa Romeo Giulia or Stelvio?
Yes, provided they are hubcentric, correctly specified, and fitted to the correct torque. A hubcentric spacer engages the hub register directly — the hub carries the load, not the wheel bolts. Our spacers are machined to OEM tolerances and supplied with correctly rated M14×1.5 conical-seat hardware for the application.
Will wheel spacers void my Alfa Romeo warranty?
Fitting aftermarket components can affect warranty coverage on modified parts, but does not automatically void your entire vehicle warranty under UK consumer law. We recommend informing your dealer before fitting and retaining installation records. If your car is outside its warranty period this is not a concern.
What size wheel spacers should I fit to my Alfa Romeo Giulia?
12mm is the most popular choice for a subtle correction to wheel offset that keeps the car looking close to factory. 15mm produces a more noticeable track width increase and works well on Giulia Veloce and Competizione models. 20mm and 25mm suit Quadrifoglio owners wanting a more pronounced flush fitment given the wider factory arches on that variant.
What size wheel spacers should I fit to my Alfa Romeo Stelvio?
15mm works well on standard Stelvio models for a cleaner, more planted stance. The Stelvio Quadrifoglio responds well to 20mm given its wider factory arches. 25mm is suitable for buyers running aftermarket wheels with a higher ET offset than standard.
What is the correct torque for Alfa Romeo Giulia and Stelvio wheel bolts?
120Nm, tightened in a star pattern using a calibrated torque wrench. Always re-check torque after 50–100 miles following installation.
Do I need a wheel alignment after fitting wheel spacers?
Wheel spacers do not alter suspension or steering geometry directly, so a full alignment is not strictly required. However if your car has been lowered or is near the limit of its alignment tolerances, adding track width can push it fractionally out. We recommend a check if the car has been modified.
What is the difference between hubcentric and lug-centric spacers?
A hubcentric spacer has a precision-machined bore matching your hub diameter exactly — 65.1mm in this case — so the hub centres the wheel and carries the lateral load. A lug-centric spacer relies on the wheel bolts to centre the wheel, which can cause vibration and places additional stress on the fasteners over time. All Brightstone spacers are hubcentric.
Will these fit my Alfa Romeo Giulietta?
No. The Giulietta uses M12×1.25 bolts, not M14×1.5. Fitting this kit to a Giulietta would mean using incorrectly threaded bolts which is unsafe. Contact us for availability of a Giulietta-specific kit with correct M12×1.25 hardware.
