5x120 to 5x112 PCD Adapter (72.6mm to 66.6mm)
What's included
In every kit
2× hubcentric PCD adapters — bored to 72.6mm → 66.6mm, in your chosen thickness
Supplied without wheel bolts — this kit does not include hardware. Your existing bolts will be too short once the PCD adapter is fitted, so you'll need a set of extended bolts matched to your PCD adapter's thickness. Get in touch and we can source these for you, or fit your own.
5x120 to 5x112 PCD Adapter (72.6mm to 66.6mm)

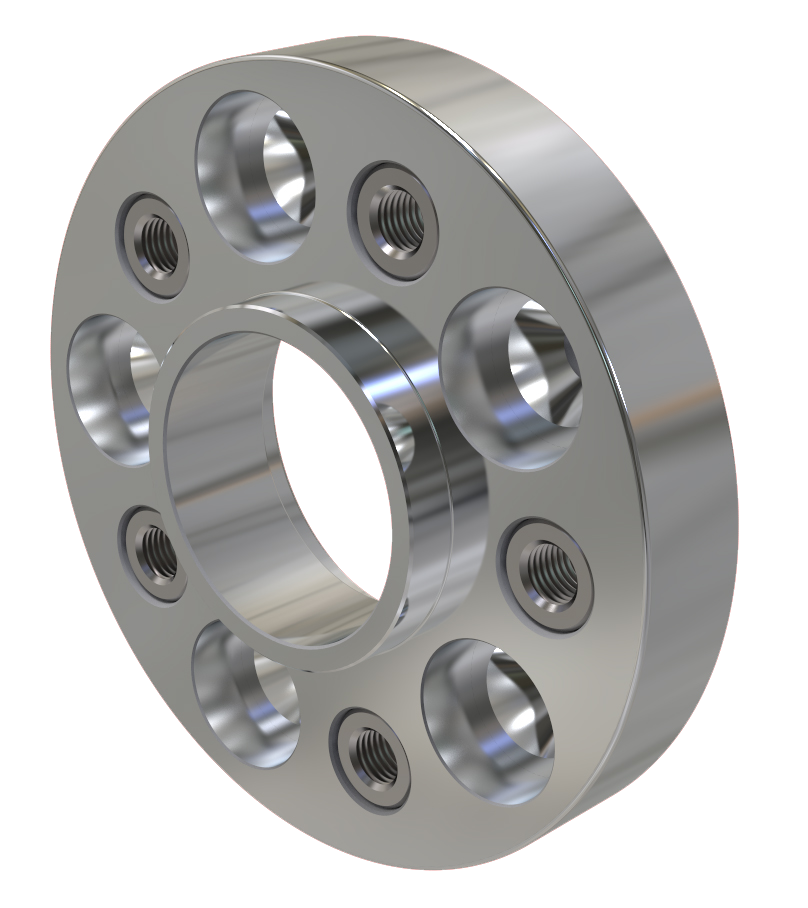

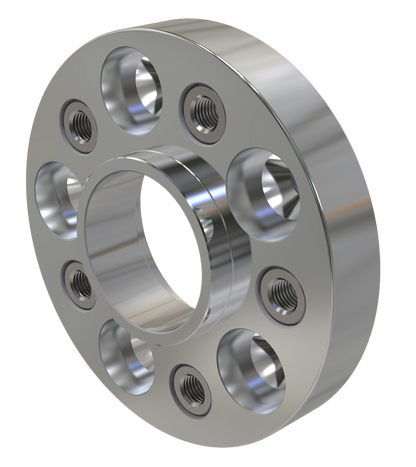

Converts a BMW F-series hub (5×120, 72.6mm bore) to run 5×112 wheels with a 66.6mm centre bore — built for owners of BMW 3 Series (F30/F31/F34), 4 Series (F32/F33/F36) and 5 Series (F10/F11), 2010–2019, who want to fit wheels from the newer G-series BMW platform, or Audi/Mercedes wheels sharing the same 5×112 pattern. Also known as a wheel adapter or bolt pattern adapter — it's the same part.
| From PCD / bore | 5×120, 72.6mm |
| To PCD / bore | 5×112, 66.6mm |
| Thickness | 15mm, 20mm or 25mm |
| Fixing type | Bolt-to-bolt |
| Bolts included | No — correct bolt length depends on your exact car and wheel, contact us to source the right ones |
| Material | 6082-T6 billet aluminium |
| Made in | UK |
Each adapter is hubcentric on both faces — the vehicle-side bore is machined to 72.6mm to locate precisely on your existing BMW F-series hub, and the wheel-side register is machined to 66.6mm so 5×112 wheels centre correctly with no reliance on the bolts alone. BMW kept the same M14×1.25 conical bolt across the F-to-G PCD change, so genuine BMW G-series wheels reuse your existing bolt spec; Audi and Mercedes wheels at this same bore use a different M14×1.5 ball-seat bolt instead. Extended bolts matched to your chosen thickness and wheel source are required and sold separately.
Fitment note: the makes and models listed above are a guide to vehicles commonly using this hub and bore combination — they are not a guarantee of fitment. Specifications can vary by trim, model year and market, so please confirm your exact vehicle's PCD and centre bore before ordering. If you're at all unsure, contact us with your vehicle details and we'll confirm fitment before you buy.
5x120 to 5x112 Adapter FAQ
Will this fit my BMW F30, F32 or F10?
Yes — this adapter is machined specifically around the 5×120, 72.6mm hub used on BMW's F-series 3, 4 and 5 Series (2010–2019). If you're unsure whether your specific model or year shares this hub, send us your details before ordering.
Can I fit BMW G-series, Audi or Mercedes wheels with this?
Yes, provided those wheels use the 5×112 pattern with a 66.6mm centre bore — the standard bore for BMW G20/G30-generation wheels, Audi B9 A4/A5/Q5, and Mercedes W205/W213-generation wheels.
Do I need to buy new bolts, or can I reuse my existing ones?
Yes, new bolts are needed, and which ones depends on the wheel source. BMW G-series wheels use the same M14×1.25, 60° cone-seat bolt as your F-series car, so those may already suit. Audi or Mercedes wheels use a different M14×1.5 ball-seat bolt instead. Contact us with your wheel source and we can confirm or source the correct bolts for you at an extra cost.
What thickness should I choose?
15mm gives a subtle offset change, 20mm is the most common choice for a noticeable stance improvement without pushing clearances, and 25mm is more aggressive — check clearance against your arch and suspension components before choosing 25mm.
Is this adapter hubcentric on both sides?
Yes. The vehicle-side face is machined to 72.6mm to locate on your BMW F-series hub exactly as your original wheel does, and the wheel-side face is machined to 66.6mm so 5×112 wheels centre on the adapter itself rather than relying on the bolts to hold the wheel in position.
