Meaning of PCD: What Pitch Circle Diameter Means and How to Measure It

If you have searched for the meaning of PCD, you have probably been looking at wheels, wheel spacers, or bolt patterns and wondered what the specification actually means. Car wheels list several measurements, and PCD is one of the most important. It describes the bolt pattern that connects the wheel to the hub. Get this measurement wrong and the wheel simply will not fit. When we machine hubcentric wheel spacers at Brightstone Engineering, PCD is one of the first dimensions we verify because it determines how the wheel, spacer, and hub all align. So before measuring wheels or ordering parts, it helps to know exactly what PCD means and how it is used.

Meaning of PCD

The meaning of PCD is simple once you break the term down. PCD stands for Pitch Circle Diameter. It describes the diameter of an imaginary circle that passes through the centre of each wheel bolt hole on a wheel or hub.

Wheel manufacturers write PCD as two numbers. For example, 5×120 or 5×112. The first number shows how many wheel bolts or studs the wheel uses. The second number shows the diameter of the circle that those bolts sit on, measured in millimetres.

So when someone asks what does PCD stand for, they are asking about the measurement that defines a wheel’s bolt pattern. This specification determines how the wheel attaches to the hub of the vehicle. If the PCD does not match the hub, the wheel will not mount correctly.

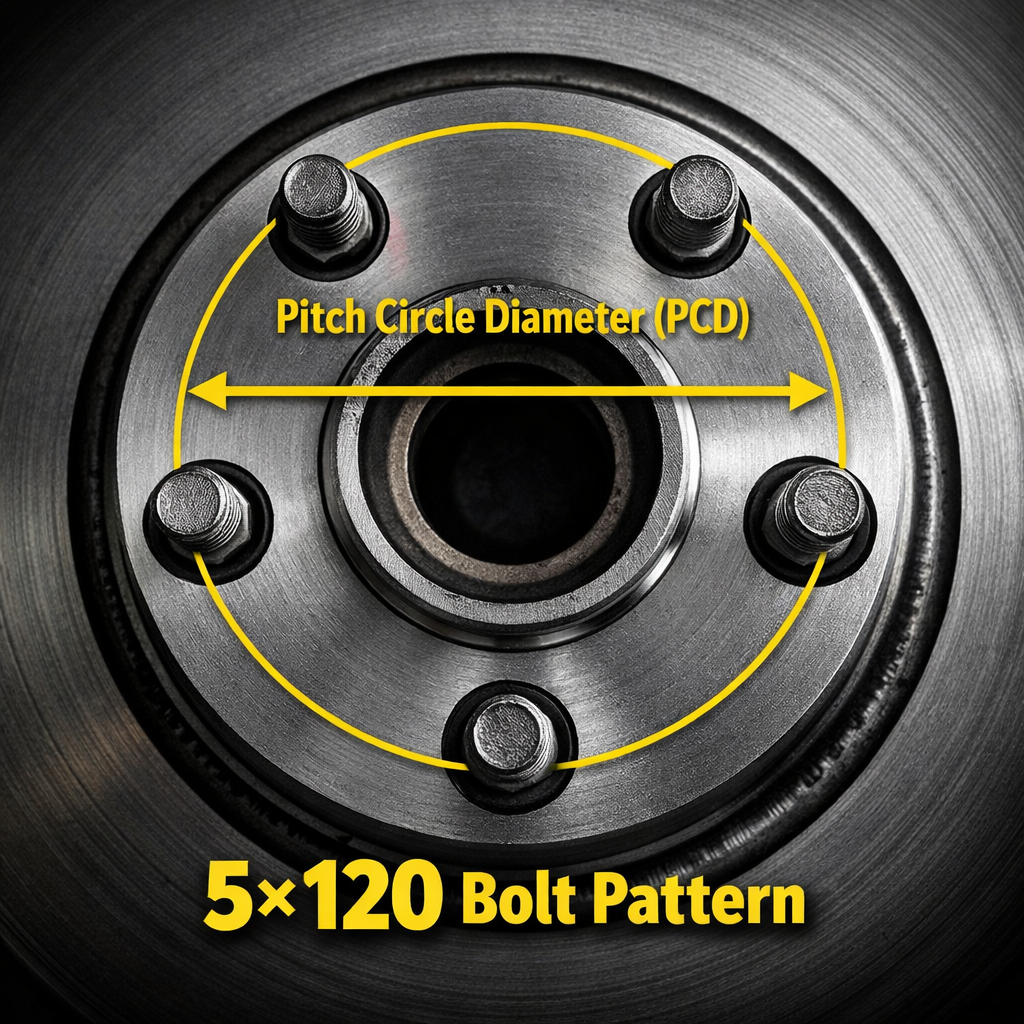

For example, many BMW vehicles use a 5×120 PCD, which means the wheel has five bolt holes spaced on a 120 mm diameter circle. Audi and Mercedes vehicles commonly use 5×112. These numbers may look small, yet they control the exact alignment between the wheel and the hub.

In practice, PCD is one of the first measurements engineers check when working with wheel fitment. When we design and machine hubcentric wheel spacers, we must match the spacer PCD precisely to the vehicle hub and the wheel itself. Even a small mismatch will prevent the wheel from seating correctly on the hub.

What Is Pitch Circle Diameter?

Pitch circle diameter is the engineering term used to describe the bolt pattern on a wheel or hub. The measurement refers to the diameter of a circle that passes through the centre point of each bolt hole. In mechanical drawings this circle is called the pitch circle.

You may also see the term written as pitch centre diameter or pitch center diameter. Both mean the same thing. Engineers also use the phrase bolt circle diameter (BCD) in some contexts. Each term describes the same measurement: the circular pattern formed by the wheel bolts or studs.

This measurement controls how a wheel mounts to the hub. Every bolt hole must sit exactly on the pitch circle. If the holes sit even a few millimetres off that circle, the wheel will not line up with the studs on the hub.

For example, imagine a wheel with five bolt holes. If those holes sit on a 112 mm circle, the PCD is written as 5×112. If the circle diameter is 120 mm, the PCD becomes 5×120. The number of bolts and the circle diameter together define the bolt pattern.

Engineers rely on pitch circle diameter whenever they design rotating parts that mount with bolts. Wheels, brake discs, and many drivetrain components all use this same principle. In wheel fitment, the pitch circle diameter is one of the main measurements that determines whether a wheel, hub, or spacer will fit a vehicle correctly.

Wheel Bolt Patterns and PCD Explained

In everyday conversation, most people do not say pitch circle diameter. Instead, they talk about a wheel bolt pattern or simply a bolt pattern. These phrases describe the same measurement as PCD.

A wheel bolt pattern shows how the wheel attaches to the hub using bolts or studs. The pattern describes two things: how many bolts the wheel uses and the diameter of the circle that those bolts form. Because of this, the bolt pattern and the PCD always represent the same information.

For example, if someone says a wheel has a 5×120 bolt pattern, they are describing a wheel with five bolt holes placed on a 120 mm circle. That is exactly the same specification as a 5×120 PCD.

You may also hear the terms wheel stud pattern or lug pattern. These are common in car forums and parts catalogues. Again, they refer to the same idea. The wheel studs or lugs follow a circular pattern that must match the hub.

Because of this, the bolt pattern must match perfectly between the hub and the wheel. If the pattern is different, the bolts will not line up with the holes in the wheel. For example, a 5×112 wheel will not fit a 5×120 hub, even though both use five bolts.

When we design wheel spacers, we match the spacer PCD to the vehicle hub first. After that, we machine the outer face to match the wheel bolt pattern. This keeps the wheel, spacer, and hub aligned on the same bolt circle.

Why PCD Matters When Choosing Wheels or Spacers

PCD is one of the first measurements to check when fitting new wheels or wheel spacers. The bolt holes in the wheel must line up exactly with the studs or threaded holes on the wheel hub. If the PCD is different, the bolts will not pass through the wheel correctly.

For example, a wheel with a 5×112 PCD will not fit a hub designed for 5×120, even though both wheels use five bolts. The spacing between the holes is different, so the wheel cannot seat against the hub face.

At the same time, PCD is only one part of the fitment. The centre bore of the wheel also needs to match the hub. The centre bore is the large hole in the middle of the wheel that sits over the raised lip on the hub. This lip supports the weight of the vehicle and keeps the wheel centred during rotation.

This is where hubcentric wheel spacers come into play. A hubcentric spacer sits between the wheel and the hub while maintaining the same centre location. The spacer replicates the hub lip on its outer face so the wheel still sits on a precise centre point.

Because of this, any spacer must match three key dimensions:

• the PCD of the vehicle hub

• the centre bore of the hub

• the bolt pattern of the wheel

When we machine spacers, these measurements must all line up correctly. The spacer becomes an extension of the hub, so the bolt pattern and centre location must remain perfectly aligned with the wheel.

How to Measure PCD

People often ask how to measure PCD when they are fitting wheels or checking a bolt pattern. The process is straightforward, but the method depends on how many bolts the wheel has.

To measure a bolt pattern, you need a simple measuring tool such as a ruler, vernier caliper, or tape measure. The goal is to measure the diameter of the circle that passes through the centre of each bolt hole.

Start by counting the number of bolt holes in the wheel. Most cars use either four or five bolts, although some vehicles use six. The bolt count forms the first number of the PCD.

Next, measure the distance between specific bolt holes. The measurement method changes slightly depending on the bolt pattern.

For example, a four-bolt wheel is easy to measure because the holes sit directly opposite each other. In this case you simply measure from the centre of one bolt hole to the centre of the opposite hole. That measurement gives the pitch circle diameter.

Five-bolt wheels require a different method because the holes do not sit directly across from each other. In that case you measure from the centre of one bolt hole to the outer edge of the bolt hole across the wheel. This measurement approximates the diameter of the pitch circle.

Because of these differences, the bolt count always appears with the diameter when describing a PCD. For example, a measurement of 120 mm on a five-bolt wheel becomes 5×120.

How to Measure PCD on a 4 Stud Wheel

Measuring PCD on a four-stud wheel is simple because the bolt holes sit directly opposite each other. This means the pitch circle diameter can be measured in a straight line.

First, identify two bolt holes that sit across from each other. Next, measure the distance from the centre of one hole to the centre of the opposite hole. That measurement is the pitch circle diameter.

For example, if the distance between the centres of the holes measures 100 mm, the wheel has a 4×100 PCD. The first number shows the bolt count, and the second number shows the diameter of the bolt circle.

Because the holes are evenly spaced, this method gives a direct measurement of the bolt pattern.

How to Measure PCD on a 5 Stud Wheel

Many people ask how to measure PCD on a 5 stud wheel because the bolt holes are not positioned directly opposite each other. This makes the measurement slightly less obvious.

Start by selecting any bolt hole on the wheel. Then measure from the centre of that hole to the outer edge of the bolt hole across the wheel. This measurement represents the diameter of the pitch circle.

Once you have this distance, round it to the nearest common bolt pattern size. For example:

• around 112 mm → 5×112
• around 114.3 mm → 5×114.3
•  around 120 mm → 5×120

These measurements correspond to the pitch circle diameter used by different vehicle manufacturers.

Because five-bolt wheels are common on modern cars, this method is often used when identifying an unknown wheel bolt pattern.

Calculating PCD

In some situations, engineers use a formula when calculating PCD instead of measuring the bolt pattern directly. This method is useful when you know the spacing between two bolt holes but need to determine the full pitch circle diameter.

The calculation is based on basic circle geometry. If you measure the distance between the centres of two neighbouring bolt holes, you can calculate the diameter of the bolt circle from that value.

For a five-bolt wheel, the most common formula is:

PCD = distance between two adjacent holes ÷ sin(180° ÷ number of bolts)

For example, if the centre-to-centre distance between two neighbouring bolt holes measures about 70 mm, the calculation will produce a pitch circle diameter close to 114.3 mm. This corresponds to the common 5×114.3 bolt pattern used on many vehicles.

Engineers sometimes refer to this calculation as the bolt circle diameter formula. It is commonly used when designing components that need to match an existing bolt pattern.

In practice, this calculation is useful when working from technical drawings or when reverse-engineering parts. When we design wheel spacers or other hub components, the bolt circle diameter must match the vehicle hub exactly. Even a small error in the calculated value would prevent the bolts from lining up correctly.

Common Wheel Bolt Patterns for Popular Cars

Many manufacturers use the same bolt patterns across several models. Because of this, a simple wheel bolt pattern chart can help identify the PCD used by different vehicles.

The table below shows some common wheel bolt patterns used by major car brands. These values represent the typical PCD used across many models, although there may be exceptions depending on the vehicle year and specification.

Manufacturer	Typical Bolt Pattern (PCD)
BMW	5×120
Audi	5×112
Mercedes	5×112
Porsche	5×130
Toyota	5×114.3
Honda	5×114.3
Aston Martin	5×114.3
Ford	5×108 or 5×114.3

For example, a typical BMW bolt pattern is 5×120, which means five wheel bolts arranged on a circle with a diameter of 120 mm. Audi and Mercedes vehicles often use a 5×112 pattern, while many Japanese manufacturers such as Toyota use 5×114.3.

These patterns appear frequently across the automotive industry because manufacturers reuse hub designs across multiple models. As a result, two different cars may share the same bolt pattern even though the wheels themselves look completely different.

Even so, the bolt pattern is only one part of wheel fitment. The centre bore, wheel offset, and hub dimensions must also match the vehicle hub for the wheel to mount correctly.

Can You Change a Wheel’s PCD?

Sometimes a wheel has the wrong bolt pattern for a car. In that case people often ask whether the PCD can be changed. The short answer is yes, but it requires the right hardware.

One method uses PCD adapters, which are sometimes called hub adapters. These components bolt to the vehicle hub using the original bolt pattern. The outer face of the adapter then provides a different bolt pattern for the wheel. In effect, the adapter converts one PCD to another.

For example, a hub adapter could allow a 5×112 hub to accept a 5×120 wheel. The adapter bolts to the hub first. After that, the wheel bolts to the adapter using the new bolt pattern.

Another option involves wheel spacers. Standard spacers keep the same PCD as the vehicle hub and simply move the wheel outward. This increases clearance and changes the wheel position relative to the suspension and bodywork. Because of this, spacers must match the vehicle bolt pattern exactly.

In many cases the most common solution is to use spacers that maintain the original PCD. This keeps the wheel aligned with the hub while adjusting the wheel position. When these components are machined correctly, the bolt pattern and hub location remain centred so the wheel mounts in the same way it would directly on the hub.

Final Thoughts on the Meaning of PCD

The meaning of PCD becomes clear once you see how the measurement is used. PCD, or pitch circle diameter, defines the bolt pattern that connects a wheel to the hub. The number of bolts and the diameter of the bolt circle together determine whether a wheel will mount correctly on a vehicle.

When fitting wheels, measuring the bolt pattern is one of the first checks to make. If the PCD does not match the hub, the wheel will not line up with the studs or threaded holes. Because of this, mechanics and engineers always confirm the pitch circle diameter before installing wheels, spacers, or adapters.

PCD also works alongside other wheel measurements. The centre bore must match the hub lip, and the wheel offset must place the wheel in the correct position relative to the suspension. When all of these dimensions match, the wheel will seat correctly against the hub and rotate smoothly.

For anyone working with wheels or wheel spacers, knowing the pitch circle diameter is a basic but important part of wheel fitment. Once you know the bolt pattern and how to measure it, identifying the correct wheels or spacers becomes much easier.
