Precision CNC Automotive Component

Volvo Hubcentric Wheel Spacers – 5×108 PCD, 63.4mm Bore | UK Made | Brightstone Engineering

PCD 5x108mm

Centre Bore 63.4mm

Bolt M14×1.5 conical-seat

Free UK Shipping

Worldwide shipping available

Precision Made

CNC machined in-house

Fast Dispatch

Typically 1–3 business days

Lifetime Guarantee

Built for long-term reliability

🇬🇧 Made in Britain by Brightstone Engineering

Secure checkout — All major cards and wallets accepted

View full details

Choose from our pre-set bundles

Quick pick: front & rear

Tap a preset to select your set

Prefer to choose your own combination? Skip the presets and set quantities directly in "Build your set" below.

Build your set

Select one or more thicknesses. Each pair ships with bolts extended for that thickness — check them against your own before fitting.

10mm £99.00

15mm £109.00

20mm £109.00

25mm Currently unavailable £129.00

30mm Currently unavailable £149.00

£0.00 No items selected

Wheel bolt thread: M14×1.5 · 60° conical (taper) seat · OEM bolt ~28mm

Extended bolts in this thread are supplied with your kit, selected for your car’s OEM fitment. Measure a bolt from your car and check it against ours before fitting.

Check before fitting: you must measure a bolt from your car and confirm the bolts you fit match it and that their threaded part is longer by the thickness of the spacer you’ve bought, then tighten to your manufacturer’s torque setting. Bolt checksBefore we dispatch: Once the order has been placed, we will email to confirm the model, make and year of the car to ensure that the bolts are correct before dispatch.

Something went wrong adding these to your cart. Please try again.

Added to your cart.

Volvo Hubcentric Wheel Spacers – 5×108 PCD, 63.4mm Bore | UK Made | Brightstone Engineering

No items selected

£0.00

Volvo 5x108 63.4mm Hubcentric Wheel Spacers

UK Manufactured

5x108 Bolt pattern

63.4mm Centre bore

6082-T6 Billet aluminium

M14×1.5 conical-seat Correct hardware

Lifetime Guarantee

UK manufactured Machined in-house - not imported and relabelled

Hubcentric fitment Bored to exactly 63.4mm to match your hub lip - no balancing issues

Billet aluminium 6082-T6 — aerospace-grade, strong and lightweight

Correct hardware Extended M14×1.5 conical-seat wheel bolts included, selected to match OEM thread and seat

Lifetime guarantee Covers materials and manufacturing defects

What's included

In every kit

2× hubcentric wheel spacers — bored to 63.4mm, in your chosen thickness

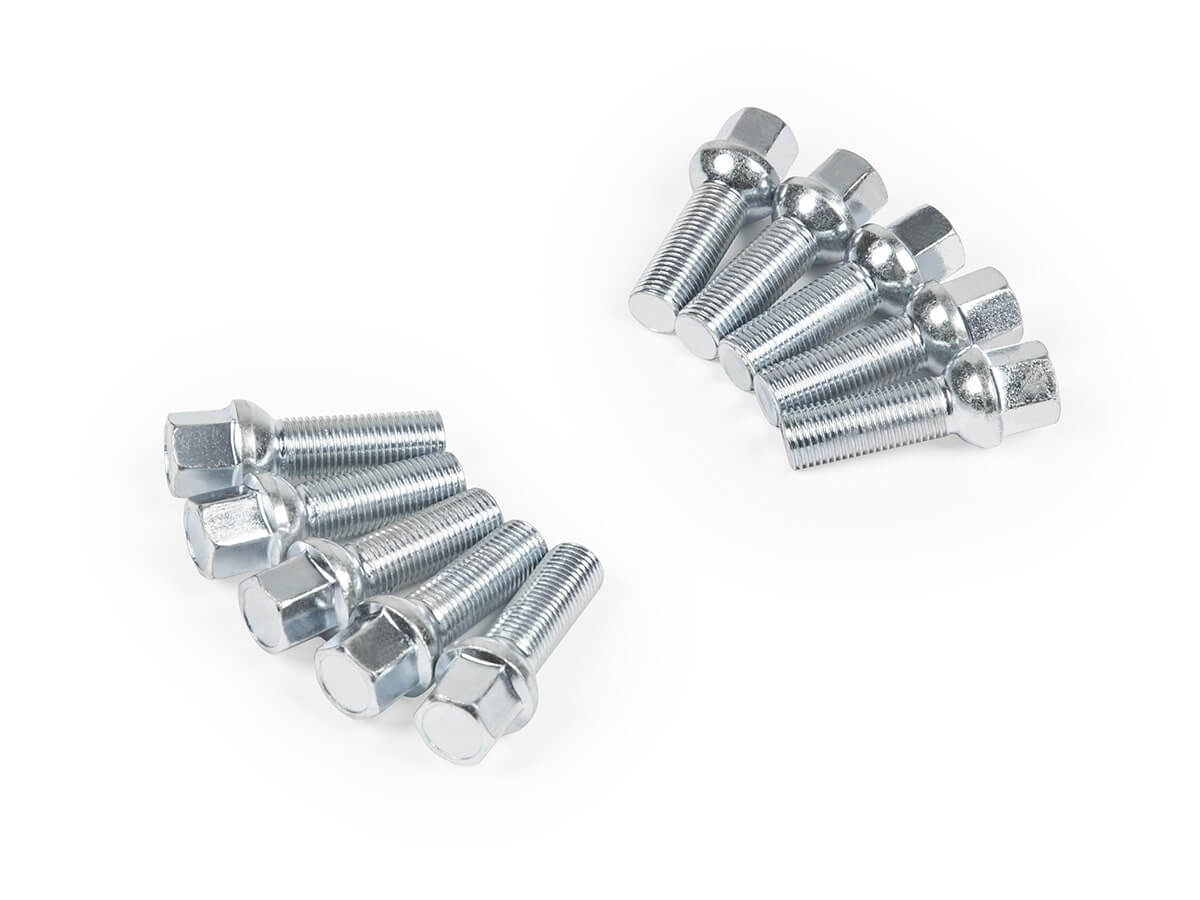

10× extended wheel bolts — M14×1.5 conical-seat. Standard bolts have about 28mm of thread; the threaded part of ours is extended by your wheel spacer's thickness (for example, 48mm of thread for a 20mm wheel spacer). We make every effort to send the correct bolts, but you must check them against the bolts on your car before fitting — thread, seat and threaded length. See bolt checks below. If your car uses wheel nuts and studs (not bolts), this kit will not work for you. Get in touch to see if we can help.

Before we dispatch: Once the order has been placed, we will email to confirm the model, make and year of the car to ensure that the bolts are correct before dispatch.

Before you fit — your responsibility

Check your bolts before fitting

We make every effort to send the correct bolts for your vehicle, but vehicles vary by model year, market, trim and previous modifications — we can’t see what is fitted to your car. It is the responsibility of the buyer and whoever fits these parts to check every bolt against the car before use. Do not fit any bolt you have not checked, even if it came from us.

Before we dispatch: Once the order has been placed, we will email to confirm the model, make and year of the car to ensure that the bolts are correct before dispatch.

Measure a bolt from your car.Remove one of your existing wheel bolts and measure its thread length, thread size and pitch, and check its seat type (the shape under the head — see step 2). Measure the threaded part only — from where the thread starts to the tip, not including the head. The threaded part of the new bolt must be longer than this by the thickness of the spacer you’ve bought: for example, a bolt with 28mm of thread used with a 20mm spacer needs a bolt with 48mm of thread. Standard thread length for this fitment is around 28mm — if yours differs, stop and contact us before fitting.
Compare it with the bolts you’ll fit — including ours.Thread size, pitch, seat type and head must match your original bolt exactly. What is the seat? It’s the shape of the underside of the bolt head — the part that presses against your wheel. It’s usually either cone-shaped (called “conical” or “60° taper”) or rounded (called “ball” or “radius”). It must match the shape of the bolt holes in your wheel: the wrong shape only touches the wheel on a thin edge and can work loose. Simple check: hold your old bolt next to the new one — the underside of the heads should be the same shape.
Check the extra length matches your spacer.The threaded part of the new bolt must be longer than the threaded part of your original by the thickness of the spacer you’ve bought — for example, a 20mm spacer needs a bolt 20mm longer. If you’ve bought different thicknesses for front and rear, keep each bolt set with its own spacers.
Confirm full thread engagement.Once fitted, each bolt must engage the hub by at least as much thread as your original bolt did without a spacer — never less — without bottoming out or fouling anything behind the hub. What is thread engagement? It’s how much of the bolt’s thread is actually screwed into the hub — this is what holds your wheel on. Simple check: when you take out an original bolt, count how many full turns it takes to come out once it’s loose. After fitting, each new bolt must take at least that many full turns to screw in by hand before its head reaches the wheel. Fewer turns means less thread holding the wheel on — do not drive the car. If a bolt stops turning before its head reaches the wheel, it may be too long or cross-threaded — don’t force it. Once every bolt is in, tighten them to your vehicle manufacturer’s specified torque setting using a torque wrench — check your owner’s handbook or a main dealer for the correct figure for your car.
If anything doesn’t match, don’t fit it.Contact us with photos and measurements before fitting and we’ll sort it out.

Fitting should be done by a competent person or a professional garage. Re-check all bolts after the first 50–100 miles. Brightstone Engineering cannot accept responsibility for problems caused by fitting bolts that have not been checked against the vehicle as described above.

These Volvo wheel spacers are precision CNC-machined hubcentric track widening spacers, built specifically for current-generation Volvo SPA and CMA-platform vehicles including the XC40, XC60, S60, V60, S90, V90 and second-generation XC90 (2016 on). Every pair is bored to exactly 63.4mm centre bore to sit flush on the hub — no vibration, no balancing issues, no adaptors needed.

Fitting Volvo wheel spacers pushes the wheel outward, reducing your ET offset and correcting wheel offset, widening your track width, and giving your Volvo a flush fitment OEM-plus stance that closes the wheel arch gap and fills the arches properly. Compatible with 5×108 Volvo wheel spacers across the current SPA/CMA platform range.

Available in 10mm, 15mm, 20mm, and 25mm.

If you want a custom size, please feel free to contact us.

Fitment:

These Volvo wheel spacers are designed for SPA and CMA-platform Volvo vehicles with a 5×108 PCD (pitch circle diameter) wheel bolt pattern and 63.4mm hub bore (centre bore), supplied with M14×1.5 conical-seat extended wheel bolts. Compatible models include the Volvo XC40, XC60 (2017 on), S60 (2018 on), V60 (2018 on), S90, V90 and second-generation XC90 (2016 on).

These spacers are not compatible with the first-generation Volvo XC90 (2003–2014), which uses a different 67.1mm centre bore despite sharing the same 5×108 PCD. Fitting a spacer bored for the wrong generation will not sit flush on the hub. Contact us if you need the earlier XC90's spec confirmed.

Check your PCD, centre bore, and model generation before ordering.

If you're unsure, contact us and we'll confirm the correct fitment before you order.

This table reflects the PCD and Hub Bore Specs.

Model	Platform	Drive	Body	Engine range	Years	HP range
Volvo XC40 — CMA (2017–)
XC40	CMA	AWD/FWD	SUV	T2, T3, T4, T5, D3, D4, Recharge	2017–	120–408 hp
Volvo XC60 — SPA (2017–)
XC60	SPA	AWD	SUV	B4, B5, B6, T8 Recharge	2017–	197–455 hp
Volvo S60 / V60 — SPA (2018–)
S60 / V60	SPA	AWD/FWD	Saloon & Estate	B3, B4, B5, T8 Recharge, Polestar Engineered	2018–	163–455 hp
Volvo S90 / V90 — SPA (2016–)
S90 / V90	SPA	AWD/FWD	Saloon & Estate	B4, B5, B6, T8 Recharge	2016–	197–455 hp
Volvo XC90 — SPA, 2nd gen (2016–)
XC90	SPA	AWD	SUV	B5, B6, T8 Recharge	2016–	197–455 hp

All models above use 5×108 PCD, 63.4mm centre bore and M14×1.5 conical-seat wheel bolts. Always confirm your vehicle's PCD, hub bore and bolt thread before ordering.

Installation:

Professional fitting recommended. Before fitting, you must check the bolts against your car.

Measure a bolt from your car. Remove one of your existing wheel bolts and measure it. Measure the threaded part only — from where the thread starts to the tip, not including the head. The threaded part of the new bolt must be longer than this by the thickness of the spacer you've bought: for example, a bolt with 28mm of thread used with a 20mm spacer needs a bolt with 48mm of thread.
Compare it with the bolts you'll be fitting — whether supplied by us or sourced yourself. Thread size, pitch, seat type and head must match your original.
What is the seat? It's the shape of the underside of the bolt head — the part that presses against your wheel. It's usually either cone-shaped (called "conical" or "60° taper") or rounded (called "ball" or "radius"). It must match the shape of the bolt holes in your wheel: the wrong shape only touches the wheel on a thin edge and can work loose. Simple check: hold your old bolt next to the new one — the underside of the heads should be the same shape.
Check the extra length. The threaded part of the new bolt must be longer than the threaded part of your original by the thickness of the spacer you've bought.
Confirm thread engagement. Once fitted, every bolt must engage the hub by at least as much thread as your original bolt did without a spacer — never less.
What is thread engagement? It's how much of the bolt's thread is actually screwed into the hub — this is what holds your wheel on. The spacer moves the wheel further out, which is why the bolt needs to be longer. Simple check: when you take out an original bolt, count how many full turns it takes to come out once it's loose. After fitting the spacer and wheel, each new bolt must take at least that many full turns to screw in by hand before its head reaches the wheel. Fewer turns means less thread holding the wheel on — do not drive the car. If a bolt stops turning before its head reaches the wheel, it may be too long or cross-threaded — don't force it. Once every bolt is in, tighten them to your vehicle manufacturer's specified torque setting using a torque wrench — check your owner's handbook or a main dealer for the correct figure for your car.
If anything doesn't match, do not fit them — contact us first.
