Precision CNC Automotive Component

Jaguar Hubcentric Wheel Spacers

From £99per pair, bolts included

  • Made in Britain
  • Free UK delivery
  • Dispatched in 1–3 days
PCD
5×108mm
Centre bore
63.4mm
Bolt
M14×1.5 conical-seat
Free UK Shipping
Worldwide shipping available
Precision Made
CNC machined in-house
Fast Dispatch
Typically 1–3 business days
Lifetime Guarantee
Built for long-term reliability
🇬🇧 Made in Britain by Brightstone Engineering
Secure checkout — All major cards and wallets accepted
View full details

Choose your sizes

Every size, front and rear.

Start with a ready-made set

Tap a card and we'll tick the table for you.

Or choose your own sizes

Tick a front size, a rear size, or just one for a single pair.

Thickness, front and rear choice, and price per pair
ThicknessFrontRearPer pair
5mm £99.00
10mm £99.00
12.5mm £99.00
15mm £109.00
18mm £109.00
20mm £109.00

Choose your sizes above

£0.00
  • Extended bolts included
  • Free UK delivery
  • Dispatched in 1–3 business days

Lifetime guarantee Secure checkout · all major cards and wallets

No items selected

Added to your cart.

Something went wrong adding these to your cart. Please try again.

How your bolts are matched

  1. 1You place your order
  2. 2We email you to confirm your car and your current bolts
  3. 3We send extended bolts to match. Check them against your originals before fitting. How to check
Jaguar Hubcentric Wheel Spacers – 5×108 PCD, 63.4mm Bore | UK Made | Brightstone Engineering
No items selected
£0.00

UK Manufactured
5x108 Bolt pattern
63.4mm Centre bore
6082-T6 Billet aluminium
M14×1.5 conical-seat Correct hardware
Lifetime Guarantee
UK manufactured Machined in-house - not imported and relabelled

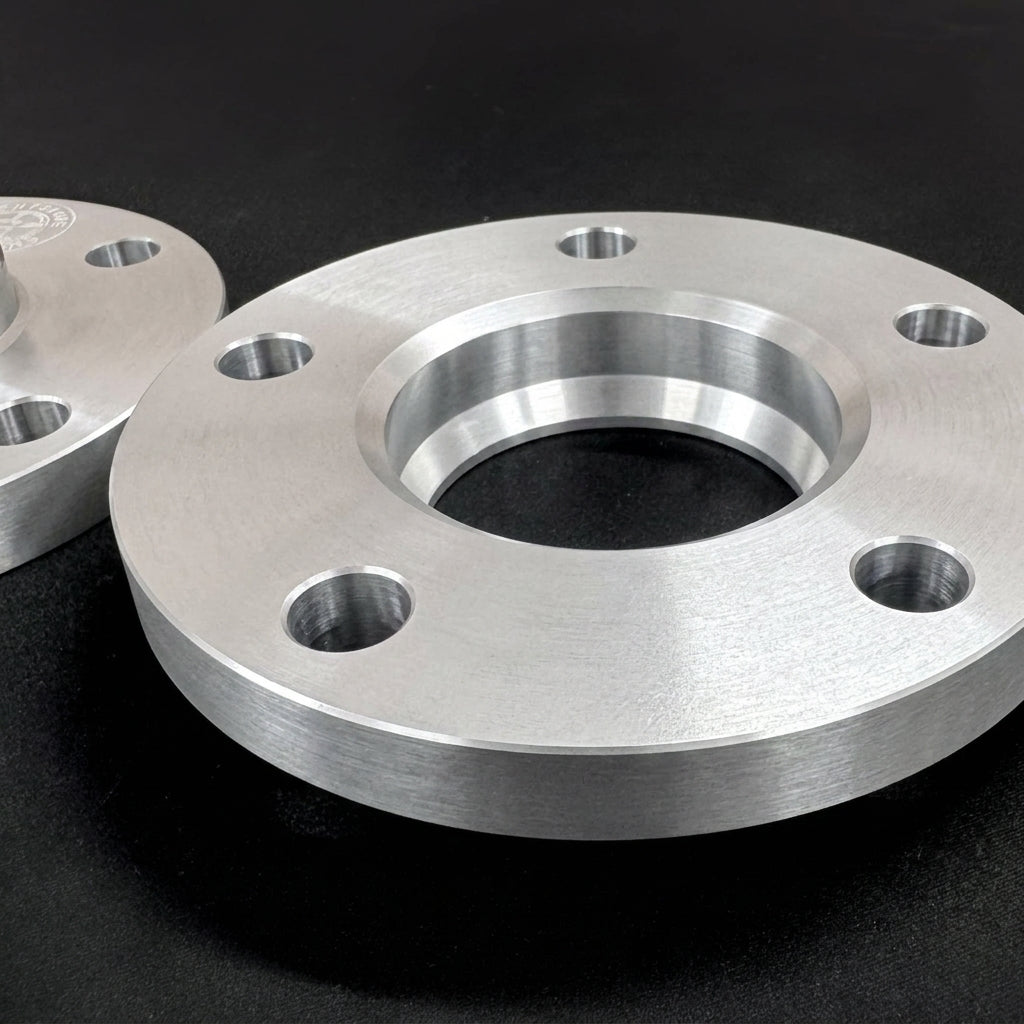

Hubcentric fitment Bored to exactly 63.4mm to match your hub lip - no balancing issues
Billet aluminium 6082-T6 — aerospace-grade, strong and lightweight
Correct hardwareExtended wheel bolts, matched to your car
Lifetime guarantee Covers materials and manufacturing defects

What's included

In every kit

2× hubcentric wheel spacers — bored to 63.4mm, in your chosen thickness

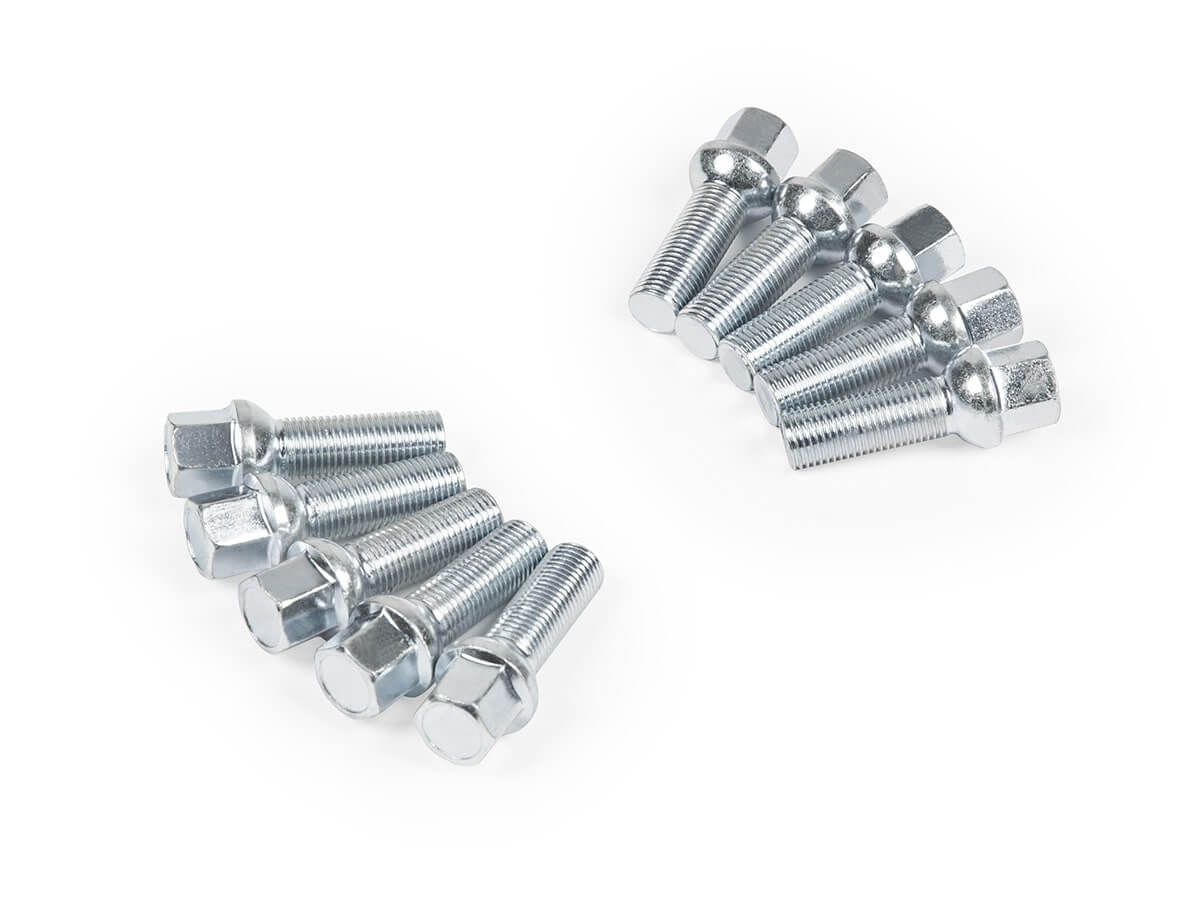

10× extended wheel bolts — M14×1.5 conical-seat, extended by your wheel spacer's thickness and matched to your car after you order. Not for cars with wheel nuts and studs — get in touch.

Before you fit — your responsibility

Check your bolts before fitting

We make every effort to send the correct bolts for your vehicle, but vehicles vary by model year, market, trim and previous modifications — we can’t see what is fitted to your car. It is the responsibility of the buyer and whoever fits these parts to check every bolt against the car before use. Do not fit any bolt you have not checked, even if it came from us.

Show the 5 checks
  1. Measure a bolt from your car.Remove one of your existing wheel bolts and measure its thread length, thread size and pitch, and check its seat type (the shape under the head — see step 2). Measure the threaded part only — from where the thread starts to the tip, not including the head. The threaded part of the new bolt must be longer than this by the thickness of the spacer you’ve bought: for example, a bolt with 28mm of thread used with a 20mm spacer needs a bolt with 48mm of thread. Standard thread length for this fitment is around 28mm — if yours differs, stop and contact us before fitting.
  2. Compare it with the bolts you’ll fit — including ours.Thread size, pitch, seat type and head must match your original bolt exactly. What is the seat? It’s the shape of the underside of the bolt head — the part that presses against your wheel. It’s usually either cone-shaped (called “conical” or “60° taper”) or rounded (called “ball” or “radius”). It must match the shape of the bolt holes in your wheel: the wrong shape only touches the wheel on a thin edge and can work loose. Simple check: hold your old bolt next to the new one — the underside of the heads should be the same shape.
  3. Check the extra length matches your spacer.The threaded part of the new bolt must be longer than the threaded part of your original by the thickness of the spacer you’ve bought — for example, a 20mm spacer needs a bolt 20mm longer. If you’ve bought different thicknesses for front and rear, keep each bolt set with its own spacers.
  4. Confirm full thread engagement.Once fitted, each bolt must engage the hub by at least as much thread as your original bolt did without a spacer — never less — without bottoming out or fouling anything behind the hub. What is thread engagement? It’s how much of the bolt’s thread is actually screwed into the hub — this is what holds your wheel on. Simple check: when you take out an original bolt, count how many full turns it takes to come out once it’s loose. After fitting, each new bolt must take at least that many full turns to screw in by hand before its head reaches the wheel. Fewer turns means less thread holding the wheel on — do not drive the car. If a bolt stops turning before its head reaches the wheel, it may be too long or cross-threaded — don’t force it. Once every bolt is in, tighten them to your vehicle manufacturer’s specified torque setting using a torque wrench — check your owner’s handbook or a main dealer for the correct figure for your car.
  5. If anything doesn’t match, don’t fit it.Contact us with photos and measurements before fitting and we’ll sort it out.

Fitting should be done by a competent person or a professional garage. Re-check all bolts after the first 50–100 miles. Brightstone Engineering cannot accept responsibility for problems caused by fitting bolts that have not been checked against the vehicle as described above.

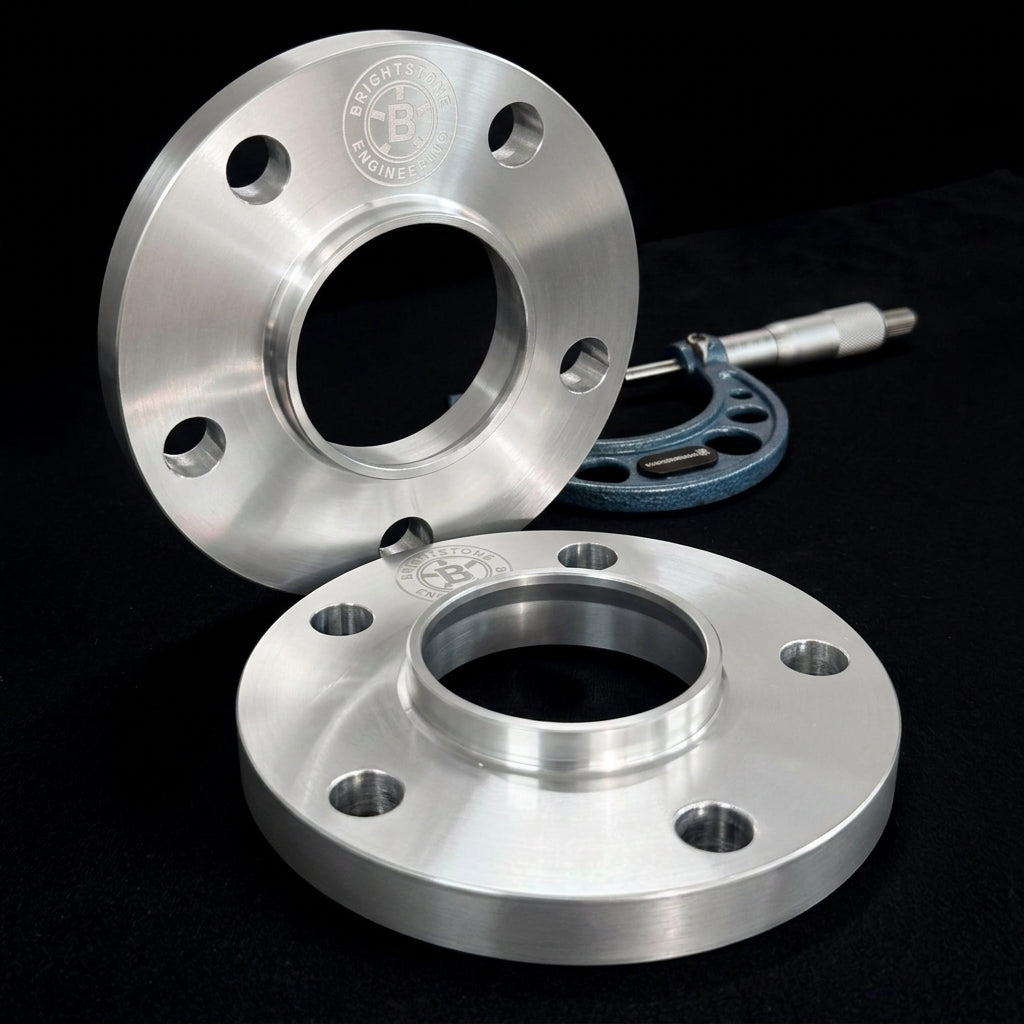

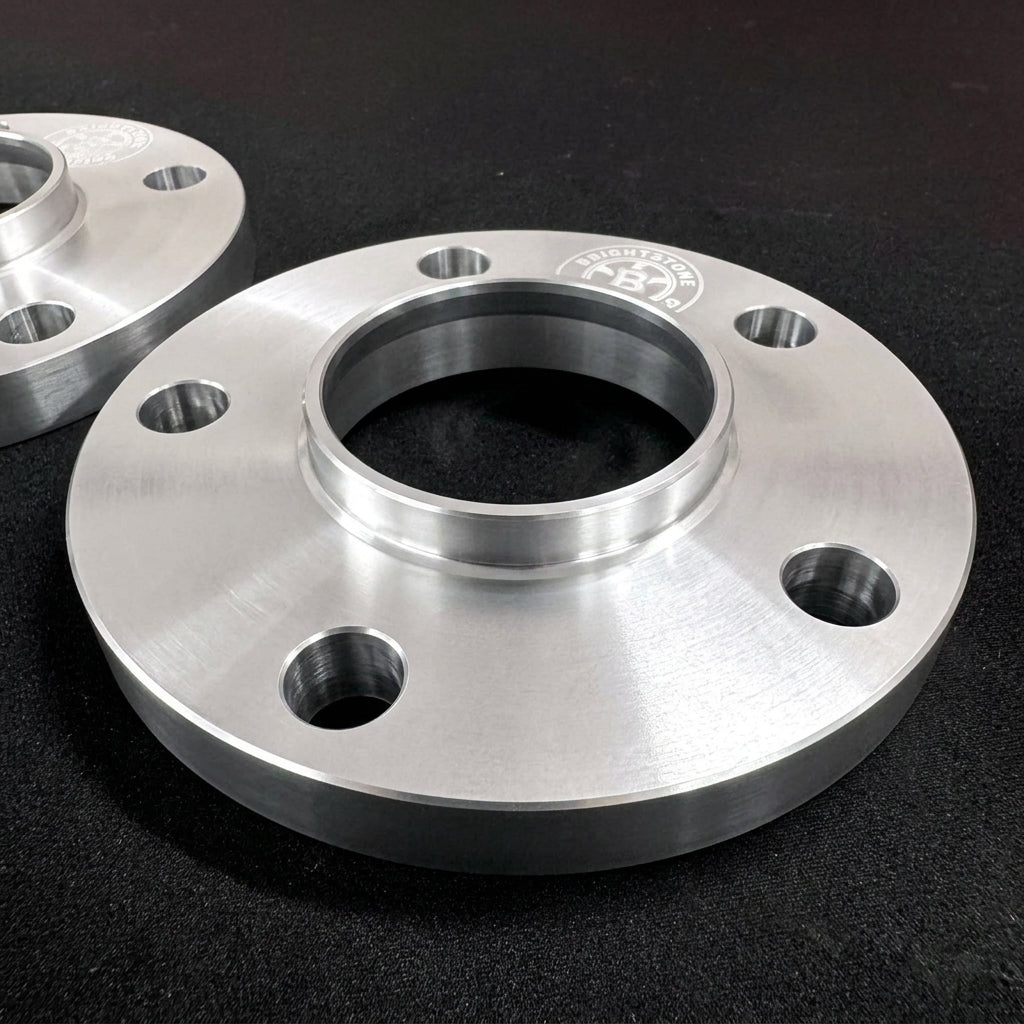

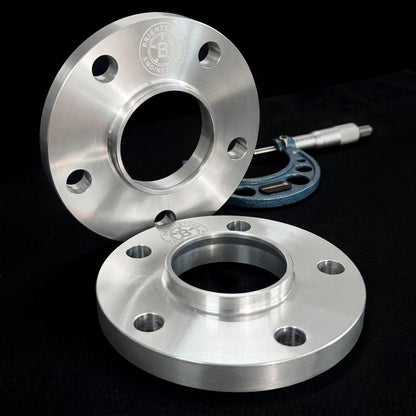

These Jaguar wheel spacers are precision CNC-machined hubcentric track-widening spacers, machined in the UK from aerospace-grade 6082-T6 billet aluminium. Every pair is bored to exactly 63.4mm so the spacer locates directly on the hub — the hub centres the wheel and carries the load, not the bolts, so there is no vibration and no balancing issue.

Fitting spacers pushes the wheel outboard, reduces the effective ET offset, widens the track and gives a flush, arch-filling stance without any change to the suspension.

Available in 5mm, 10mm, 12.5mm, 15mm, 18mm and 20mm. Need a custom thickness? Contact us.

Fitment

Designed for Jaguar models with a 5×108 PCD wheel bolt pattern and a 63.4mm hub bore, using M14×1.5 wheel bolts. Supplied with extended M14×1.5 bolts matched to the spacer thickness.

Model Chassis Years PCD Bore Thread Seat
Jaguar XE X760 2015–2024 5×108 63.4 mm M14×1.5 Conical 60°
Jaguar XF X260 2015– 5×108 63.4 mm M14×1.5 Conical 60°
Jaguar XJ X351 2010–2019 5×108 63.4 mm M14×1.5 Conical 60°
Jaguar F-Type X152 2013–2024 5×108 63.4 mm M14×1.5 Conical 60°
Jaguar F-Pace X761 2016– 5×108 63.4 mm M14×1.5 Conical 60°
Jaguar E-Pace X540 2017– 5×108 63.4 mm M14×1.5 Conical 60°
Jaguar I-Pace X590 2018– 5×108 63.4 mm M14×1.5 Conical 60°

All models above use 5×108 PCD, a 63.4mm hub bore and M14×1.5 wheel bolts. Always confirm your car's PCD, hub bore and bolt thread before ordering.

Wheel bolt requirement

Supplied with extended wheel bolts. The correct length is:

required bolt length = OEM bolt length + spacer thickness

OEM Jaguar shank length is approximately 28mm . Minimum thread engagement must be at least 1.5× the bolt diameter — 21mm for M14. Bolts are supplied with a conical 60° seat to match Jaguar OEM alloy wheels; if you run aftermarket wheels the seat type is set by the wheel, not the spacer.

Specification

  • Material: 6082-T6 billet aluminium
  • Centre bore held to 0.02mm
  • Hard-anodised finish
  • Sold as a pair, with extended M14×1.5 wheel bolts included

Shipping & Guarantee

  • Free UK delivery on all orders
  • International shipping available
  • Lifetime guarantee on all Brightstone spacers

Brightstone Engineering are a UK manufacturer of wheel spacers. This is the same physical part as our Volvo 5×108 / 63.4mm spacers. See our full range of wheel spacers here.
